- AD7760BSVZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC468809
-
Category:Analog to Digital, ADC IC
-
Package:TQFP-64
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD7760BSVZ Analog to Digital Converter, 24Bit, 2.5MSPS, Single, 4.75V, 5.25V, TQFP
-
Stock Locations:
-
Availability:3,415 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.01
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description

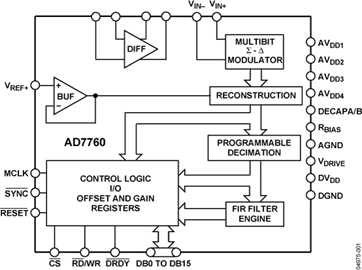

- The AD7760BSVZ is a 24-bit 100dB Sigma-Delta (Σ-Δ) ADC with on-chip buffer ideal for high speed data acquisition. It combines wide input bandwidth and high speed with the benefits of Σ-Δ conversion to achieve a performance of 100dB SNR at 2.5MSPS. Wide dynamic range combined with significantly reduced anti-aliasing requirements simplifies the design process. An integrated buffer to drive the reference, a differential amplifier for signal buffering and level shifting, an over range flag, internal gain and offset registers and a low-pass digital FIR filter makes the AD7760 a compact, highly integrated data acquisition device requiring minimal peripheral component selection. The high performance ADC offers programmable decimation rates and the digital FIR filter can be adjusted if the default characteristics are not appropriate for the application. It is ideal for applications demanding high SNR without a complex front-end signal processing design.
- 120dB dynamic range at 78kHz output data rate
- 100dB dynamic range at 2.5MHz output data rate
- 112dB SNR at 78kHz output data rate
- 100dB SNR at 2.5MHz output data rate
- 2.5MHz maximum fully filtered output word rate
- Fully differential modulator input
- On-chip differential amplifier for signal buffering
- Low-pass finite impulse response (FIR) filter with default or user-programmable coefficients
- Modulator output mode
- Over range alert bit
- Digital offset and gain correction registers
- Filter bypass modes
- Low power and power-down modes
- Synchronization of multiple devices via SYNC pin
- ESD sensitive device, take proper precaution while handling the device.
AD7760BSVZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | TQFP-64 |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 49 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 64 Position |
| Number of Bits | 24 Bit |
| Power Dissipation | 958 W |
| Sample Rate | 2.5 Msps |
| Resolution (Bits) | 24.0 Bit |
| Input Capacitance | 55.0 pF |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 958 mW |
| Number of Input Channels | 1 Channel |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
