AD7914BRUZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC399159
Category:
Analog to Digital, ADC IC
Package:

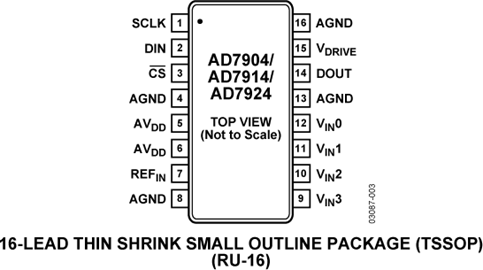

TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7914BRUZ Analog to Digital Converter, 10Bit, 1MSPS, Single, 2.7V, 5.25V, TSSOP
Stock Locations:
Availability:
274 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.66

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7914BRUZ is a 4-channel 10-bit high speed, low power successive approximation Analog-to-digital Converter (ADC) operates from a single 2.7 to 5.25V power supply and feature throughput rates up to 1MSPS. The parts contain a low noise wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 8MHz. The conversion process and data acquisition are controlled using CS and the serial clock signal, allowing the device to easily interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS and conversion is initiated at this point. There are no pipeline delays associated with the part. It uses advanced design techniques to achieve very low power dissipation at maximum throughput rates. Through the configuration of the control register, the analog input range for the part can be selected as 0V to REFIN or 0V to 2 x REFIN, with either straight binary or twos complement output coding.
Low power
Wide input bandwidth
Flexible power/serial clock speed management
No pipeline delays
High speed serial interface - SPI™/QSPI™/MICROWIRE™/DSP compatible

Show

AD7914BRUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Digital Logic Level	SAR
Supply Voltage (DC)	2.70V (min)
Supply Current	600 µA
Number of Circuits	1 Circuit
Number of Channels	4 Channel
Number of Positions	16 Position
Number of Bits	10 Bit
Power Dissipation	13.5 W
Sample Rate	1 Msps
Resolution (Bits)	10.0 Bit
Input Capacitance	20.0 pF
Input Impedance	9.00 GΩ
Number of ADCs	1 ADC
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	13.5 mW
Number of Input Channels	4 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.7 V
Input Voltage	2.5V, 5V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
