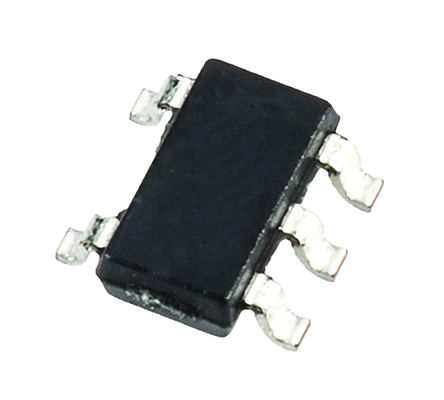

Image is for your reference only,please check specifications for details

AD8130ARMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC355400
Category:
Operational Amplifier, OP Amp IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8130ARMZ Differential Amplifier, Low Cost, 1 Amplifiers, 1.8mV, 1dB, 270MHz, -40℃, 85℃
Stock Locations:
Availability:
244 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8130ARMZ is a 270MHz Differential Receiver Amplifier designed as receiver for the transmission of high speed signals over twisted-pair cables to work with the AD8131 or AD8132 drivers. Either can be used for analogue or digital video signals and for high speed data transmission. It is differential to single ended amplifier with extremely high CMRR at high frequency. Therefore, it can also be effectively used as high speed instrumentation amp or for converting differential signals to single-ended signals. The AD8130 is stable at a gain of 1 and can be used for applications where lower gains are required. Both have user-adjustable gain to help compensate for losses in the transmission line. The gain is set by the ratio of two resistor values. The amplifier has very high input impedance on both inputs, regardless of the gain setting.
High speed
High CMRR
1MR Differential high input impedance
12.5nV/√Hz Low noise
Low distortion
-79dBc Worst harmonic at 5MHz
User-adjustable gain
No external components for G = +1
ESD sensitive device, take proper precaution while handling the device.

Show

AD8130ARMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Output Current	35mA @5V
Supply Current	13 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	86 dB
Bandwidth	270 MHz
Slew Rate	1.09 kV/μs
Gain Bandwidth Product	110 MHz
Input Offset Voltage	1.8 mV
Input Bias Current	500 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	290 MHz
Minimum CMRR Range	86 dB
Supply Voltage (Max)	20V ~ 30V
Supply Voltage (Min)	2.25 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
