Description
- Product Details
- The AD8342 is a high performance, broadband active mixer. It is well suited for demanding receive-channel applications that require wide bandwidth on all ports and very low intermodulation distortion and noise figure.
- The AD8342 provides a typical conversion gain of 3.7 dB with an RF frequency of 238 MHz. The integrated LO driver presents a 50 Ω input impedance with a low LO drive level, helping to minimize the external component count.
- The differential high impedance broadband RF port allows for easy interfacing to both active devices and passive filters. The RF input accepts input signals as large as 1.6 V p-p or 8 dBm (relative to 50 Ω) at P1dB.
- The open-collector differential outputs provide excellent balance and can be used with a differential filter or IF amplifier, such as the AD8370, AD8375, AD8351, AD8352, or ADL5561. These outputs can also be converted to a single-ended signal using a matching network or a balun transformer. The outputs are capable of swinging 2 V p-p when biased to the VPOS supply rail.
- The AD8342 is fabricated on an Analog Devices, Inc., proprietary, high performance SiGe IC process. The AD8342 is available in a 16-lead LFCSP. It operates over a −40°C to +85°C temperature range. An evaluation board is also available.
- **Applications**
- Cellular base station receivers
- ISM receivers
- Radio links
- RF instrumentation
- ### Features and Benefits
- Broadband RF, LO, and IF ports
- Conversion gain: 3.7 dB
- Noise figure: 12.2 dB
- Input IP3: 22.7 dBm
- Input P1dB: 8.3 dBm
- LO drive: 0 dBm
- Differential high impedance RF input port
- Single-ended, 50 Ω LO input port
- Open-collector IF output port
- Single-supply operation: 5 V @ 98 mA
- Power-down mode

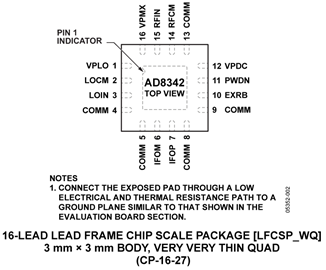

- Exposed paddle LFCSP: 3 mm × 3 mm
AD8342 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Recommended for New Designs |
