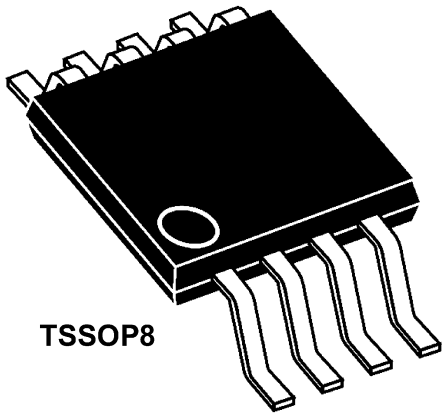

Image is for your reference only,please check specifications for details

AD8552ARUZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC470970
Category:
Operational Amplifier, OP Amp IC
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8552ARUZ Operational Amplifier, Dual, 2 Amplifier, 1.5MHz, 0.4V/µs, 2.7V to 5.5V, TSSOP, 8Pins
Stock Locations:
Availability:
286 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.93

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8552ARUZ is an Operational Amplifier has ultralow offset, drift and bias current. The AD8552 dual amplifier featuring rail-to-rail input and output swings. All are guaranteed to operate from 2.7 to 5V with a single supply. The AD8552 provides the benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. With an offset voltage of only 1µV and drift of 0.005µV/°C, the AD8552 is perfectly suited for applications in which error sources cannot be tolerated. Temperature, position and pressure sensors and strain gage amplifier benefit greatly from nearly zero drift over their operating temperature range. The rail-to-rail input and output swings provided by the AD8552 make both high-side and low-side sensing easy. The AD8552 is specified for the extended industrial temperature range (-40 to +125°C).
Rail-to-rail input and output swing
No external capacitors required
1µV Low offset voltage
0.005µV/°C Input offset drift
130dB High gain, CMRR, PSRR
20pA Ultralow input bias current
700µA/op amp Low supply current
50µs Overload recovery time
ESD sensitive device, take proper precaution while handling the device.

Show

AD8552ARUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Output Current	30mA @5V
Supply Current	850 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	120 dB
Bandwidth	1.5 MHz
Slew Rate	400 mV/μs
Gain Bandwidth Product	1.5 MHz
Input Impedance	1.00 TΩ
Input Offset Voltage	0.005 mV
Input Bias Current	0.00001μA @5V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1.5 MHz
Minimum CMRR Range	120 dB
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5 V
	Show
Size-Length	3 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
