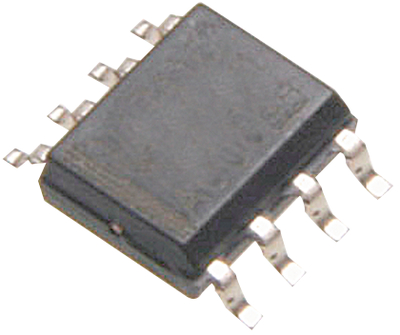

AD8620ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC169700
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8620ARZ Operational Amplifier, Dual, 2 Amplifier, 25MHz, 50V/µs, ± 5V to ± 13V, SOIC, 8Pins
Stock Locations:
Availability:
1,185 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.79

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8620ARZ is a Precision Wide Bandwidth Dual JFET Operational Amplifier features ultralow offset voltage and drift, very low input voltage and current noise, very low input bias current and wide bandwidth. Unlike many JFET amplifiers, the AD8620 input bias current is low over the entire operating temperature range. It is stable with capacitive loads of over 1000pF in non-inverting unity gain, much larger capacitive loads can be driven easily at higher noise gains. Combined with high input impedance, great precision and very high output drive, the AD8620 is ideal amplifier for driving high performance ADC inputs and buffering DAC converter outputs. Applications for the AD8620 include electronic instruments, ATE amplification, buffering and integrator circuits, CAT/MRI/ultrasound medical instrumentation, instrumentation quality photodiode amplification, fast precision filters (including PLL filters) and high quality audio.
6nV/√Hz Noise
Dual-supply operation
100µV Maximum offset voltage
10pA Maximum input bias current
600ns to 0.01% Settling
Low distortion
No phase reversal
Unity-gain stable
ESD sensitive device, take proper precaution while handling the device.

Show

AD8620ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	13.0 V
Operating Voltage	5V ~ 13V
Supply Current	3 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	90 dB
Input Capacitance	15.0 pF
Bandwidth	25 MHz
Slew Rate	50.0 V/μs
Gain Bandwidth Product	25 MHz
Input Impedance	1.00 TΩ
Input Offset Voltage	85 µV
Input Bias Current	3 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	25 MHz
Minimum CMRR Range	90 dB
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
