Image is for your reference only,please check specifications for details

AD9142ABCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC840621
Category:
Digital to Analog, DAC IC
Package:
LFCSP-72
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD9142ABCPZ Digital to Analog Converter, 16Bit, 1.6GSPS, Differential, 1.7V to 1.9V, 3.13V to 3.47V, LFCSP
Stock Locations:
Availability:
239 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 124.24

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details

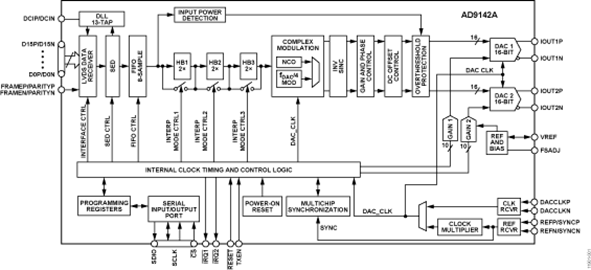

The AD9142A is a dual, 16-bit, high dynamic range digital-to-analog converter (DAC) that provides a sample rate of 1600 MSPS, permitting a multicarrier generation up to the Nyquist frequency. The AD9142A TxDAC+® includes features optimized for direct conversion transmit applications, including complex digital modulation, input signal power detection, and gain, phase, and offset compensation. The DAC outputs are optimized to interface seamlessly with analog quadrature modulators, such as the ADL537x F-MOD series and the ADRF670x series from Analog Devices, Inc. A 3-wire serial port interface provides for the programming/readback of many internal parameters. Full-scale output current can be programmed over a range of 9 mA to 33 mA. The AD9142A is available in a 72-lead LFCSP.
**PRODUCT HIGHLIGHTS**
1. Wide signal bandwidth (BW) enables emerging wideband and multiband wireless applications.
2. Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.
3. Very small inherent latency variation simplifies both software and hardware design in the system. It allows easy multichip synchronization for most applications.
4. New low power architecture improves power efficiency (mW/MHz/channel) by 30%.
5. Input signal power and FIFO error detection simplify designs for downstream analog circuitry protection.
6. Programmable transmit enable function allows easy design balance between power consumption and wakeup time.
**APPLICATIONS**
Wireless communications: 3G/4G and MC-GSM base stations,
wideband repeaters, software defined radios
Wideband communications: point-to-point, LMDS/MMDS
Transmit diversity/MIMO
Instrumentation
Automated test equipment
### Features and Benefits
Supports input data rate up to 575 MHz
Very small inherent latency variation: <2 DAC clock cycles
Proprietary low spurious and distortion design
6-carrier GSM ACLR = 79 dBc at 200 MHz IF
SFDR > 85 dBc (bandwidth = 300 MHz) at ZIF
Flexible 16-bit LVDS interface
Supports word and byte load
Data interface DLL
Sample error detection and parity
Multiple chip synchronization
Fixed latency and data generator latency compensation
Selectable 2×, 4×, 8× interpolation filter
Low power architecture
fS/4 power saving coarse mixer
Input signal power detection
Emergency stop for downstream analog circuitry protection
FIFO error detection
See datasheet for additional features

Show

AD9142ABCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	72 Pin
Case/Package	LFCSP-72
Number of Outputs	2 Output
Supply Current	1.50 mA
Number of Channels	2 Channel
Number of Positions	72 Position
Number of Bits	16 Bit
Power Dissipation	1.98 W
Sample Rate	1.60 GHz
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	2 DAC
	Show
Size-Length	10.1 mm
Size-Width	10.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
