Image is for your reference only,please check specifications for details
- AD9162BBCAZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC1203103
-
Category:Digital to Analog, DAC IC
-
Package:CSP-BGA
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD9162BBCAZ Digital to Analogue Converter, 16Bit, 12GSPS, Serial, 2.375V to 2.625V, CSPBGA, 169Pins
-
Stock Locations:
-
Availability:18 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 231.75
Updated at 16/03/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description

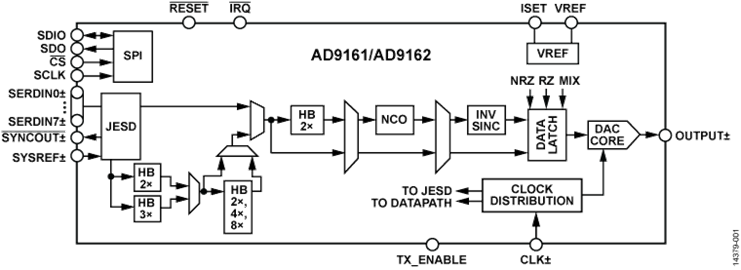

- Product Details
- The AD9162 is a high performance, 16-bit digital-to-analog converter (DAC) that supports data rates to 6 GSPS. The DAC core is based on a quad-switch architecture coupled with a 2× interpolator filter that enables an effective DAC update rate of up to 12 GSPS in some modes. The high dynamic range and bandwidth makes these DACs ideally suited for the most demanding high speed radio frequency (RF) DAC applications.
- In baseband mode, wide bandwidth capability combines with high dynamic range to support DOCSIS 3.1 cable infrastructure compliance from the minimum of two carriers to full maximum spectrum of 1.794 GHz. A 2× interpolator filter (FIR85) enables the AD9161/AD9162 to be configured for lower data rates and converter clocking to reduce the overall system power and ease the filtering requirements. In Mix-Mode™ operation, the AD9161/AD9162 can reconstruct RF carriers in the second and third Nyquist zones up to 7.5 GHz while still maintaining exceptional dynamic range. The output current can be programmed from 8 mA to 38.76 mA. The AD9161/AD9162 data interface consists of up to eight JESD204B serializer/deserializer (SERDES) lanes that are programmable in terms of lane speed and number of lanes to enable application flexibility.
- A serial peripheral interface (SPI) can configure the AD9161/AD9162 and monitor the status of all registers. The AD9161/AD9162 are offered in an 165-ball, 8.0 mm × 8.0 mm, 0.5 mm pitch, CSP_BGA package and in an 169-ball, 11 mm × 11 mm, 0.8 mm pitch, CSP_BGA package, including a leaded ball option for the AD9162.
- **Product Highlights**
- 1. High dynamic range and signal reconstruction bandwidth supports RF signal synthesis of up to 7.5 GHz.
- 2. Up to eight lanes JESD204B SERDES interface flexible in terms of number of lanes and lane speed.
- 3. Bandwidth and dynamic range to meet DOCSIS 3.1 compliance with margin.
- **Applications**
- Broadband communications systems
- DOCSIS 3.1 cable modem termination system (CMTS)/video on demand (VOD)/edge quadrature amplitude modulation (EQAM)
- Wireless communications infrastructure
- W-CDMA, LTE, LTE-A, point to point
- Instrumentation, automatic test equipment (ATE)
- Radars and jammers
- ### Features and Benefits
- DAC update rate up to 12 GSPS (minimum)
- Direct RF synthesis at 6 GSPS (minimum)
- DC to 2.5 GHz in baseband 1× bypass mode
- DC to 6 GHz in 2× nonreturn-to-zero (NRZ) mode
- 1.5 GHz to 7.5 GHz in Mix-Mode
- Bypassable interpolation (1× or bypass mode)
- 2×, 3×, 4×, 6×, 8×, 12×, 16×, 24×
- Excellent dynamic performance
AD9162BBCAZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 169 Pin |
| Case/Package | CSP-BGA |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Bits | 16 Bit |
| Power Dissipation | 1.83 W |
| Sample Rate | 12.0 GHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1830 mW |
| Supply Voltage | 2.375V ~ 2.625V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance Edition | 2016/06/20 |
| ECCN Code | 3A001.a.5.b.2 |
