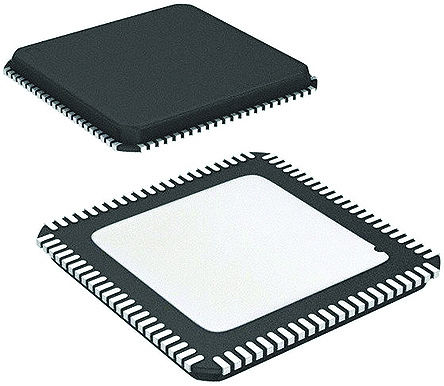

AD9548BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1168726
Category:
Clock Chip, Timing IC
Package:
LFCSP-88
Datasheet:
Datasheet 3D Model
Description:
Clock Generator 0.001MHz to 750MHz-IN 450MHz-OUT 88Pin LFCSP EP Tray
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.57

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The AD9548 provides synchronization for many systems, including synchronous optical networks (SONET/SDH). The AD9548 generates an output clock synchronized to one of up to four differential or eight single-ended external input references. The digital PLL allows for reduction of input time jitter or phase noise associated with the external references. The AD9548 continuously generates a clean (low jitter), valid output clock even when all references have failed by means of a digitally controlled loop and holdover circuitry.
The AD9548 operates over an industrial temperature range of −40°C to +85°C.
**Applications**
Network synchronization
Cleanup of reference clock jitter
GPS 1 pulse per second synchronization
SONET/SDH clocks up to OC-192, including FEC
Stratum 2 holdover, jitter cleanup, and phase transient control
Stratum 3E and Stratum 3 reference clocks
Wireless base stations, controllers
Cable infrastructure
Data communications
### Features and Benefits
Supports Stratum2 stability in holdover mode
Supports reference switchover with phase build-out
Supports hitless reference switchover
Auto/manual holdover and reference switchover
|
4 pairs of reference input pins with each pair configurable as a single differential input or as 2 independent single-ended inputs
Input reference frequencies from 1 Hz to 750 MHz
Reference validation and frequency monitoring (1ppm)
Programmable input reference switchover priority
Please see data sheet for additional features.
---|---

Show

AD9548BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	88 Pin
Case/Package	LFCSP-88
Frequency	1 GHz
Supply Voltage (DC)	1.71V (min)
Number of Outputs	4 Output
Supply Current	190 mA
Number of Circuits	1 Circuit
Input Current	24.0 mA
Duty Cycle	55% (Max)
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.71V ~ 3.465V
Supply Voltage (Max)	1.89 V
Supply Voltage (Min)	1.71 V
	Show
Size-Length	12.1 mm
Size-Width	12.1 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
