AD9707BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC236773
Category:
Digital to Analog, DAC IC
Package:
LFCSP-32
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD9707BCPZ Digital to Analog Converter, 14Bit, 175MSPS, Differential, Single Ended, 1.7V to 3.6V, LFCSP
Stock Locations:
Availability:
3 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 16.02

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

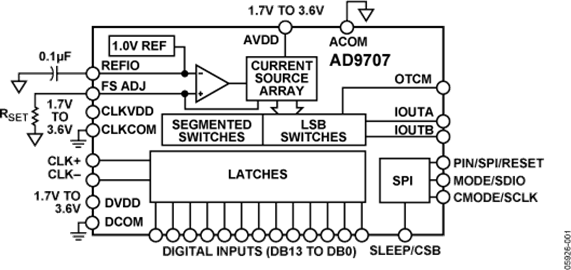

The AD9707BCPZ is a high performance CMOS Digital-to-analog Converter (DAC) specifically optimized for the transmit signal path of communication systems. This pin-compatible, 14-bit resolution family is optimized for low power operation, while maintaining excellent dynamic performance. The AD9707 offers exceptional AC and DC performance, while supporting update rates up to 175MSPS. The flexible power supply operating range of 1.7 to 3.6V and low power dissipation of the AD9707 part makes it well-suited for many applications. In addition, a power-down mode reduces the standby power dissipation to approximately 2.2mW. An adjustable output, common-mode feature allows for easy interfacing to other components that require common modes from 0 to 1.2V. Edge-triggered input latches and a 1V temperature-compensated band gap reference have been integrated to provide a complete, monolithic DAC solution.
Low power dissipation
Adjustable full-scale current outputs - 1 to 5mA
On-chip 1V reference
CMOS-compatible digital interface
Common-mode output - adjustable 0 to 1.2V
Self-calibration

Show

AD9707BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LFCSP-32
Number of Outputs	1 Output
Supply Current	5.9 mA
Number of Channels	1 Channel
Number of Positions	32 Position
Number of Bits	14 Bit
Power Dissipation	57 mW
Sample Rate	175 Msps
Resolution (Bits)	14.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	57 mW
Number of DACs	1 DAC
Supply Voltage	1.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.5 V
	Show
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
