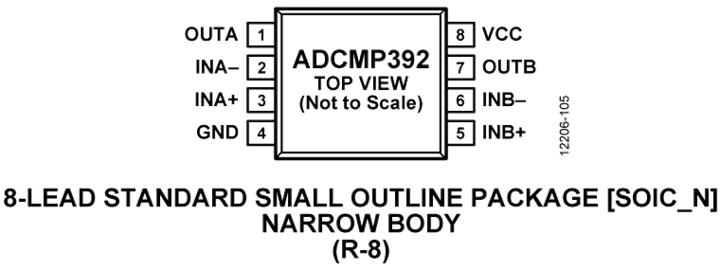

Image is for your reference only,please check specifications for details
- ADCMP392ARZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC598296
-
Category:Comparator, Analog Comparator IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES ADCMP392ARZ Analogue Comparator, Dual, Low Power, 2, 2.3V to 5.5V, NSOIC, 8Pins
-
Stock Locations:
-
Availability:287 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.22
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The ADCMP391 / ADCMP392 / ADCMP393 are single/dual/quad rail-to-rail input, low power comparators ideal for use in general-purpose applications. These comparators operate from a single supply voltage of 2.3 V to 5.5 V and draw a minimal amount of current. The single ADCMP391 consumes only 18.6 µA of supply current. The dual ADCMP392 and the quad ADCMP393 consumes 22.1 µA and 26.8 µA of supply current, respectively. The low voltage and low current operation of these devices makes it ideal for battery-powered systems.
- The comparators features a common-mode input voltage range of 200 mV beyond rails, an offset voltage of 1 mV typical across the full common-mode range, and a UVLO monitor. In addition, the design of the comparators allows a defined output state upon power-up, a logic low output while the supply voltage is less than the UVLO threshold.
- The ADCMP391 and ADCMP392 are available in 8-lead, narrow body SOIC package while the ADCMP393 is available in a 14-lead, narrow body SOIC package and a 14-lead TSSOP package. The comparators are specified to operate over the −40°C to +125°C extended temperature range.
- Applications
- Battery management/monitoring
- Power supply detection
- Window comparators
- Threshold detectors/discriminators
- Microprocessor systems
- ### Features and Benefits
- Single-supply voltage operation: 2.3 V to 5.5 V
- Rail-to-rail common-mode input voltage range
- Low input offset voltage across VCMR: 1 mV typical
- Guarantees comparator output logic low from VCC = 0.9 V to
- undervoltage lockout (UVLO)
- Operating temperature range: −40°C to +125°C
- Package type: 8-lead, narrow body SOIC
ADCMP392ARZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Output Current | ≤10 mA |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 74 dB |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.3V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
