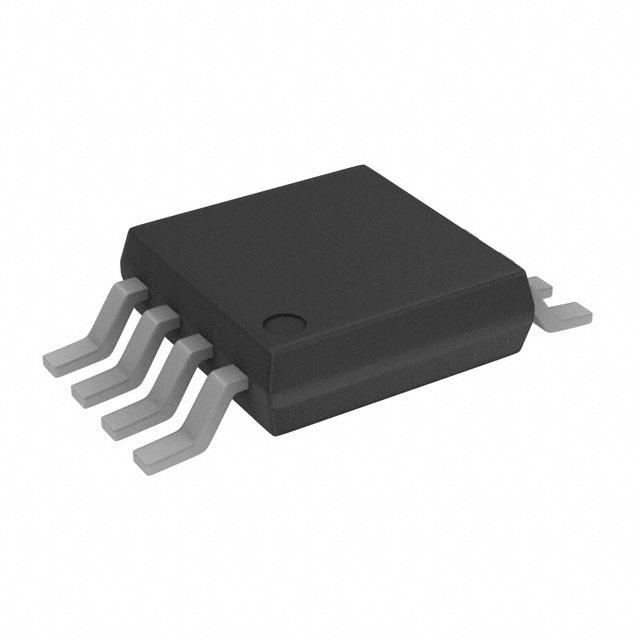

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The ADG819 is a monolithic, CMOS, single-pole, double-throw (SPDT) switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.
- FEATURES
- Low on resistance: 0.8 Ω maximum at 125°C
- 0.25 Ω maximum on resistance flatness
- 1.8 V to 5.5 V single supply
- 200 mA current carrying capability
- Automotive temperature range: –40°C to +125°C
- Rail-to-rail operation
- 6-lead SOT-23, 8-lead MSOP, and 6-ball WLCSP packages
- Fast switching times
- Typical power consumption (<0.01 µW)
- TTL-/CMOS-compatible inputs
- Pin compatible with the ADG719
- APPLICATIONS
- Power routing
- Battery-powered systems
- Communication systems
- Data acquisition systems
- Cellular phones
- Modems
- PCMCIA cards
- Hard drives
- Relay replacement
ADG819BRM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Contacts Type | SPDT |
| Supply Current | 1 nA |
| Number of Circuits | 1 Circuit |
| Number of Bits | 1 Bit |
| Power Dissipation | 5.00 µW |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| 3dB Bandwidth | 17 MHz |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
