ADIS16201CCCZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1347927
Category:
Acceleration Sensor, Accelerometer
Package:
LGA-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADIS16201CCCZ MEMS Accelerometer, Dual-Axis, Digital, X, Y, ± 1.7g, 3V, 3.6V, LGA
Stock Locations:
Availability:
308 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 41.7

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

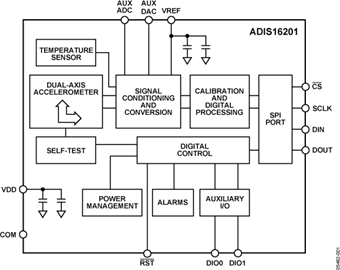

The ADIS16201 series 2-axis Acceleration and Inclination Angle Measurement System in a single compact package enabled by the Analog Devices iSensor™ integration. By enhancing the Analog Devices iMEMS® sensor technology with an embedded signal processing solution, the ADIS16201 provides factory calibrated and tuneable digital sensor data in a convenient format that can be accessed using a serial peripheral interface (SPI). Unique characteristics of the end system are accommodated easily through several built-in features, such as a single command in-system offset calibration, along with convenient sample rate and bandwidth control. The ADIS16201 is the following embedded features, which eliminate the need for external circuitry and provide a simplified system interface- configurable alarm function, auxiliary 12-bit ADC, auxiliary 12-bit DAC, configurable digital I/O port, digital self-test function.
2-axis Inclinometer/accelerometer measurements
12 -, 14-bit Digital inclination/acceleration sensor outputs
±90° Inclinometer measurement range, linear output
12-bit Digital temperature sensor output
Digitally controlled sensitivity and bias calibration
Digitally controlled sample rate
Digitally controlled frequency response
Dual alarm settings with rate/threshold limits
Auxiliary digital I/O
Digitally activated self test
Digitally activated low power mode
Auxiliary 12-bit ADC input and DAC output
3500g Powered shock survivability

Show

ADIS16201CCCZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	LGA-16
Supply Voltage (DC)	3.60V (max)
Supply Current	11 mA
Number of Positions	16 Position
Bandwidth	2.25 kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	3V ~ 3.6V
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	Compliant with Exemption
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
