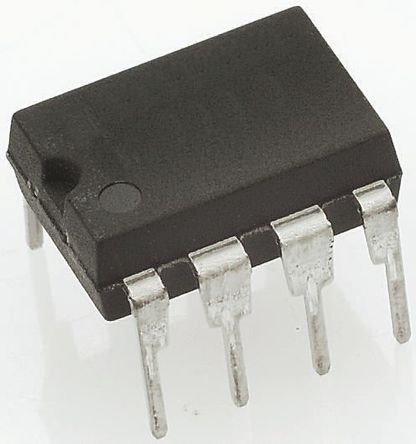

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADM709 series Power Supply Monitor which generates a system reset during power-up, power-down and brownout conditions. When VCC falls below the reset threshold, RESET goes low and holds the µP in reset. On power-up the RESET output is held low for 140ms after VCC rises above the threshold. The RESET output remains operational with VCC as low as 1V. The actual reset voltage threshold is found in the data sheet.
Precision supply voltage monitor
Upgrade for MAX709
35µA Quiescent current
140ms Minimum power-ON reset pulse

Show

ADM709LANZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	5.50V (max)
Supply Current	0.2 mA
Number of Positions	8 Position
Power Dissipation	727 mW
Threshold Voltage	4.65 V
Reset Threshold Voltage (Min)	4.5 V
Reset Threshold Voltage (Max)	4.75 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	727 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.2 V
	Show
Size-Length	9.27 mm
Size-Width	7.24 mm
Size-Height	3.43 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
