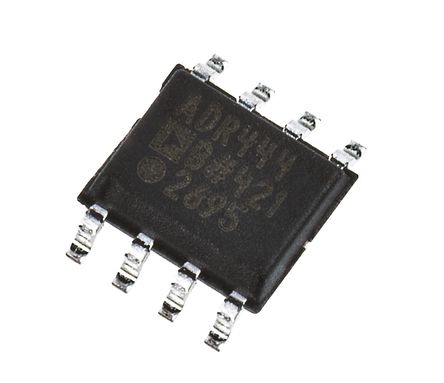

Image is for your reference only,please check specifications for details

ADR444BRZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1911440
Category:
Voltage Reference
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
* Ultralow noise (0.1Hz to 10Hz) * ADR440: 1µV p-p * ADR441: 1.2μV p-p * ADR443: 1.4μV p-p * ADR444: 1.8µV p-p * ADR445: 2.25μV p-p * Superb temperature coefficient * A grade: 10ppm/°C * B grade: 3ppm/℃ * Low dropout operation: 500mV * Input range: (VOUT + 500mV) to 18V * High output source and sink current * +10mA and -5mA, respectively * Wide temperature range:-40℃ to +125℃
Stock Locations:
Availability:
4,110 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.73

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADR444BRZ is a 4.0V LDO XFET Voltage Reference with current sink and source featuring ultralow noise, high accuracy and low temperature drift performance. Using patented temperature drift curvature correction technique and XFET technology, voltage change vs. temperature nonlinearity in the ADR444 is minimized. The XFET reference offer better noise performance than buried Zener reference and XFET references operate off low supply voltage headroom (0.5V). This combination of features makes the ADR444 ideally suited for precision signal conversion applications in high-end data acquisition systems, optical networks and medical applications. The ADR444 XFET reference is the only low noise solution for 5V systems. This reference has the capability to source up to 10mA of output current and sink up to -5mA. It also comes with a trim terminal to adjust the output voltage over a 0.5% range without compromising performance.
Ultralow noise (1.8µVp-p (0.1 to 10Hz))
Superb temperature coefficient
Low dropout operation (500mV)
Input range (VOUT + 500mV) to 18V
High output source and sink current (+10 and -5mA)
ESD sensitive device, take proper precaution while handling the device.

Show

ADR444BRZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Current Rating	3.75 mA
Capacitance Tolerance	±0.04 %
Input Voltage (DC)	4.60V ~ 18.0V
Output Voltage	4.096 V
Output Current	10 mA
Supply Current	3.75 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Voltage (Max)	20 V
Input Voltage (Min)	4.6 V
Output Voltage (Max)	4.098 V
Output Voltage (Min)	4.096 V
Output Current (Max)	10 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.04 %
Input Voltage	4.6V ~ 18V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Temperature Coefficient	±3 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
