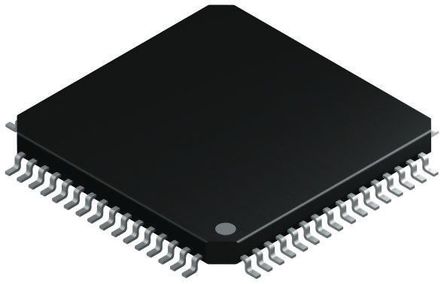

- ADS1294IPAG - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC7827300
-
Category:Analog to Digital, ADC IC
-
Package:TQFP-64
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS ADS1294IPAG. ANALOG TO DIGITAL CONVERTER ADC, 4Channel, 24Bit, 32KSPS, SERIAL, 64-TQFP
-
Stock Locations:
-
Availability:528 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 22.03
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADS1294IPAG is a 24-bit Analog-to-digital Converter (ADC) with built-in programmable gain amplifiers (PGAs), internal reference and an on board oscillator. The family of multichannel, simultaneous sampling, delta-sigma (ΔΣ) ADC incorporates all of the features that are commonly required in medical electrocardiogram (ECG) and electroencephalogram (EEG) applications. With high levels of integration and exceptional performance, the ADC enables the development of scalable medical instrumentation systems at significantly reduced size and power. Additionally, any configuration of input channels can be selected for derivation of the right leg drive (RLD) output signal. The ADC operates at data rates as high as 32kSPS, thereby allowing the implementation of software pace detection. Lead-off detection can be implemented internal to the device, either with a pull-up or pull-down resistor or an excitation current sink or source.
- Integrated respiration impedance measurement
- Digital pace detection capability
- Built-In oscillator and reference
- SPI™ compatible serial interface
- Green product and no Sb/Br
ADS1294IPAG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | TQFP-64 |
| Supply Voltage (DC) | 1.65V (min) |
| Power Rating | 10.1 mW |
| Supply Current | 2.75 mA |
| Number of Channels | 4 Channel |
| Number of Positions | 64 Position |
| Number of Bits | 24 Bit |
| Power Dissipation | 6 mW |
| Sample Rate | 32 KSPS |
| Power Consumption | 3 mW |
| Number of ADCs | 4 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 10.2 mm |
| Size-Width | 10.20 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
