ADS54J60EVM - TI
Manufacturer:
TI
ManyChip's Part#:
MC117112166
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ADS54J60EVM Evaluation Board, Low Power, 16Bit, 1GSPS Analog to Digital Converter New
Stock Locations:
Availability:
28 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 886.19

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

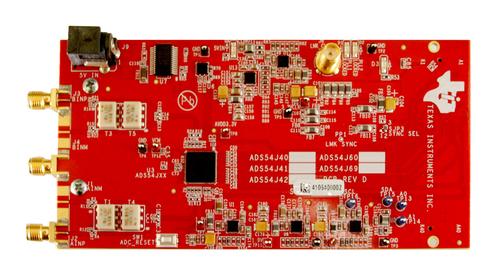

The ADS54J60EVM is an evaluation module (EVM) that allows for the evaluation of Texas Instruments’ ADS54J60 and LMK04828 clock jitter cleaner. The ADS54J60 is a low power, 16-bit, 1-GSPS analog to digital converter (ADC) with a buffered analog input and outputs featuring a JESD204B interface. The EVM has transformer coupled analog inputs to accommodate a wide range of signal sources and frequencies. The LMK04828 provides an ultra-low-jitter and phase noise ADC sample clock along with System Reference clocks and Device Sample clock for a complete JESD204B subclass 1 clocking solution.
The ADS54J60 and LMK04828 are controlled through an easy to use software GUI to enable quick configuration for a variety of uses.
The ADS54J60EVM connects directly to the TSW14J56EVM data capture hardware via the high speed FMC connector. The High Speed Data Converter Pro Software is also available for data capture and analysis support when using the TSW14J56EVM.
