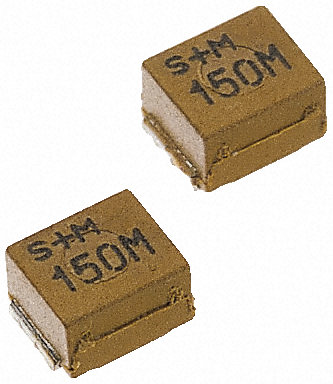

Image is for your reference only,please check specifications for details
- B82432A1473K000 - Epcos
-
Manufacturer:Epcos
-
ManyChip's Part#:MC78005990
-
Category:Inductor Surface Mount
-
Package:1812
-
Datasheet:Datasheet 3D Model
-
Description:Inductor GP Chip Molded Wirewound 47uH 10% 100kHz 40Q-Factor Ferrite 210mA 2.3Ω DCR 1812 Blister T/R
-
Stock Locations:
-
Availability:4,898 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.91
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Size 1812 (EIA) or 4532 (IEC)
- Rated inductance 1 ... 1000 μH
- Rated current 55 ... 600 mA
- Features
- ■ High Q factor
- ■ High resonance frequency
- ■ Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
- ■ RoHS-compatible
- Applications
- ■ Filtering of supply voltages, coupling, decoupling
- ■ Antenna systems
- ■ Automotive electronics
- ■ Telecommunications
- ■ Industrial electronics
B82432A1473K000 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 4532 |
| Case/Package | 1812 |
| Current Rating | 0.21 A |
| Capacitance Tolerance | ±10 % |
| Inductance | 47 µH |
| Self Resonant Frequency | 9.5 MHz |
| Q-Factor | 40.0 |
| Inductance Tolerance | ±10 % |
| Test Frequency | 0.1 MHz |
| DC Resistance (DCR) | 2.3 Ω |
| Current Rating (DC) | 210 mA |
| Resistance (DC Max) | 2.3 Ω |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 3.2 mm |
| Size-Height | 3.2 mm |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
