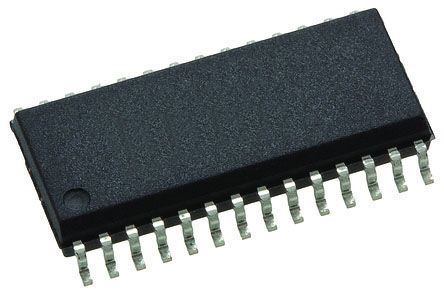

ADS774KU - TI
Manufacturer:
TI
ManyChip's Part#:
MC11851668
Category:
Analog to Digital, ADC IC
Package:
SOIC-28
Datasheet:
Datasheet 3D Model
Description:
Analog to Digital Converter Microprocessor-Compatible Sampling CMOS A/D Converter ADC Single SAR 125KSPS 12Bit Parallel 28Pin SOIC Tube
Stock Locations:
Availability:
228 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 39.73

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

A must-have for data processing uses, this ADS774KU ADC made by Texas Instruments will translate analog electrical signals. Its maximum power dissipation is 120 mW. It has a single-ended input signal. This device"s digital interface is parallel. This device is based on SAR architecture. This ADC has a resolution of 12bit. This ADC has an input voltage of 10 V/20V|±5V/±10V. This ADC has a temperature range of -40 °C to 85 °C.

Show

ADS774KU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Digital Logic Level	SAR
Supply Voltage (DC)	4.50V (min)
Operating Voltage	4.5V ~ 5.5V
Supply Current	15.0 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Bits	12 Bit
Power Dissipation	75 mW
Sample Rate	125 ksps
Power Consumption	75 mW
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	120 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	18 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
