ADS7824P - TI
Manufacturer:
TI
ManyChip's Part#:
MC75725907
Category:
Analog to Digital, ADC IC
Package:
DIP-28
Datasheet:
Datasheet 3D Model
Description:

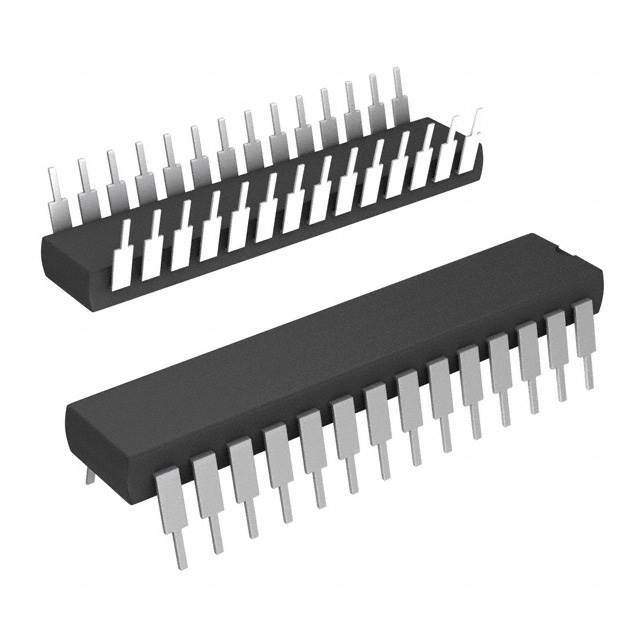

TEXAS INSTRUMENTS ADS7824P Analogue to Digital Converter, 12Bit, 40KSPS, Single, 4.75V, 5.25V, DIP
Stock Locations:
Availability:
1,564 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 23.28

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS7824P is a 4-channel sampling CMOS Analog-to-digital Converter (ADC) can acquire and convert 12-bit to within ±0.5LSB in 25µs maximum while consuming only 50mW max. Laser-trimmed scaling resistors provide the standard industrial ±10V input range and channel-to-channel matching of ±0.1%. The ADC is a low-power 12-bit sampling A/D with a four channel input multiplexer, S/H, clock, reference and a parallel/serial microprocessor interface. It can be configured in a continuous conversion mode to sequentially digitize all four channels.
25µs Maximum sampling and conversion
Pin-compatible with 16-bit ADS7825
Parallel and serial data output
Continuous conversion mode
Green product and no Sb/Br

Show

ADS7824P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	28 Pin
Case/Package	DIP-28
Supply Current	100 mA
Number of Circuits	1 Circuit
Number of Channels	4 Channel
Number of Positions	28 Position
Number of Bits	12 Bit
Power Dissipation	50 mW
Sample Rate	40 ksps
Number of ADCs	1 ADC
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	50 mW
Number of Input Channels	4 Channel
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
