Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 20 Pin |

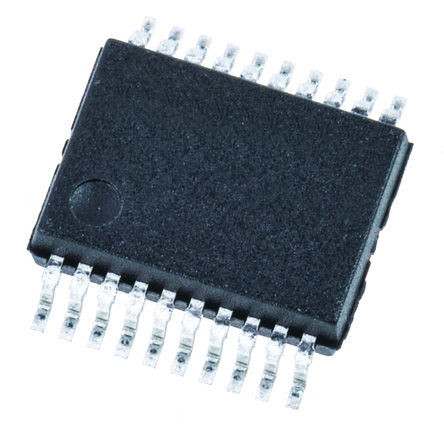

Case/Package | SSOP-20 |
Digital Logic Level | SAR |
Supply Voltage (DC) | 2.70V (min) |
Supply Current | 550 µA |
Number of Circuits | 1 Circuit |
Number of Channels | 8 Channel |
Number of Positions | 20 Position |
Number of Bits | 12 Bit |
Power Dissipation | 4.5 W |
Sample Rate | 200 ksps |
Power Consumption | 840 µW |
Number of ADCs | 1 ADC |
Number of Inputs | 4, 8 Input |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
Power Dissipation (Max) | 4.5 mW |
Number of Input Channels | 8 Channel |
Supply Voltage (Max) | 5 V |
Supply Voltage (Min) | 2.7 V |
Input Voltage | 2.5V, 5V |
Show | |
Size-Length | 7.2 mm |
Size-Width | 5.3 mm |
Size-Height | 1.95 mm |
Operating Temperature | -40℃ ~ 85℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
ECCN Code | EAR99 |
