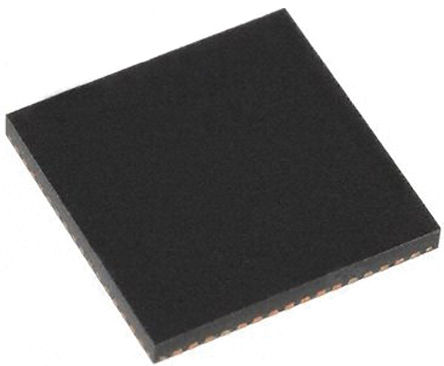

Image is for your reference only,please check specifications for details
- ADS8568SRGCT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC11508444
-
Category:Analog to Digital, ADC IC
-
Package:VQFN-64
-
Datasheet:Datasheet 3D Model
-
Description:Analog to Digital Converter, 16Bit, 510KSPS, Single, 4.5V, 5.5V, VQFN
-
Stock Locations:
-
Availability:268 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 921.04
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADS8568SRGCT is an 8-channel 16-bit simultaneous sampling Analog-to-digital Converter (ADC) with true bipolar inputs. These channels are grouped in four pairs, thus allowing simultaneous high-speed signal acquisition of up to 650kSPS. The device supports selectable parallel or serial interface with daisy-chain capability. The programmable reference allows handling of analog input signals with amplitudes up to ±12V. The ADS85x8 family supports an auto-sleep mode for minimum power dissipation.
- Maximum data rate per channel
- Excellent AC performance
- Programmable and buffered internal reference
- Selectable parallel or serial interface
- Scalable low-power operation using auto-sleep mode - Only 32mW at 10kSPS
- Fully specified over extended industrial temperature range
- Green product and no Sb/Br
ADS8568SRGCT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | VQFN-64 |
| Supply Voltage (DC) | 4.50V (min) |
| Supply Current | 36.6 mA |
| Number of Circuits | 8 Circuit |
| Number of Channels | 8 Channel |
| Number of Positions | 64 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 259.7 mW |
| Sample Rate | 500 ksps |
| Power Consumption | 335 mW |
| Number of ADCs | 8 ADC |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 389.4 mW |
| Number of Input Channels | 8 Channel |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 9.15 mm |
| Size-Width | 9.15 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
