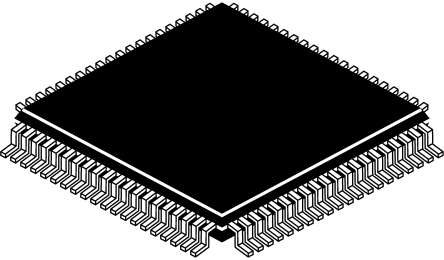

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

ARM7® MicroConverter® ADuC7xxx Microcontroller IC 16/32-Bit 41.78MHz 126KB (63K x 16) FLASH 80-LQFP (12x12)

Show

ADUC7126BSTZ126 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	80 Pin
Case/Package	LQFP-80
Frequency	41.78 MHz
Number of Positions	80 Position
Clock Speed	41.8 MHz
RAM Memory Size	32 KB
Number of Bits	32 Bit
Resolution (Bits)	12.0 Bit
Number of ADCs	1 ADC
Number of Inputs and Outputs	40 IO
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	1 DAC
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	12.2 mm
Size-Width	12.2 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
