Description
- Product Details

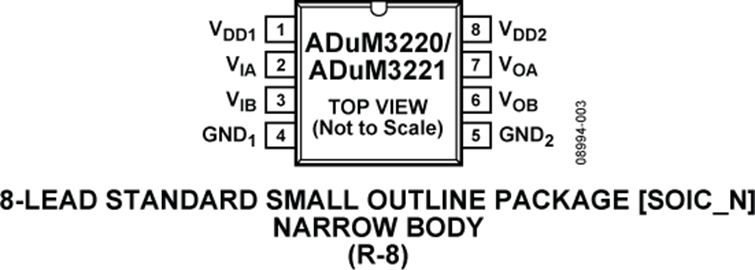

- The ADuM3220/ADuM3221 are isolated, 4 A dual-channel gate drivers based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to the alternatives, such as the combination of pulse transformers and gate drivers.
- The ADuM3220/ADuM3221 provide digital isolation in two independent isolation channels. They have a maximum propagation delay of 60 ns and 5 ns channel-to-channel matching. In comparison to gate drivers that employ high voltage level translation methodologies, the ADuM3220/ADuM3221 offer the benefit of true, galvanic isolation between the input and each output, enabling voltage translation across the isolation barrier. The ADuM3220 has shoot-through protection logic, which prevents both outputs from being on at the same time, whereas the ADuM3221 allows both outputs to be on at the same time. Both parts offer a default output low characteristic as required for gate drive applications.
- The ADuM3220/ADuM3221 operate with an input supply voltage ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems. The outputs of the ADuM3220A/ADuM3221A can be operated at supply voltages from 4.5 V to 18 V. The outputs of the ADuM3220B/ADuM3221B can be operated at supply voltages from 7.6 V to 18 V.
- The junction temperature of the ADuM3220/ADuM3221 is specified from −40°C to +125°C.
- Applications
- Isolated synchronous dc-to-dc converters
- MOSFET/IGBT gate drivers
- ### Features and Benefits
- 4 A peak output current
- Precise timing characteristics
- 60 ns maximum isolator and driver propagation delay
- 5 ns maximum channel-to-channel matching
- High junction temperature operation: 125°C
- 3.3 V to 5 V input logic
- 7.6 V to 18 V output drive
- Undervoltage lockout (UVLO) at 7.0 V VDD2
- Automotive versions qualified per AEC-Q100
- See data sheet for additional features
- **ADuM3221-EP supports defense and aerospace applications (AQEC standard)**
- Download ADuM3221-EP data sheet (pdf)
- Military temperature range: −55°C to +125°C
- Controlled manufacturing baseline
- 1 assembly/test site
- 1 fabrication site
- Enhanced product change notification
- Qualification data available on request
- V62/16622 DSCC Drawing Number
ADUM3221 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
