Description
- GENERAL DESCRIPTION
- The ADV7611 is offered in automotive, professional (no HDCP), and industrial versions. The operating temperature range is −40°C to +85°C.
- The UG-180 contains critical information that must be used in conjunction with the ADV7611.

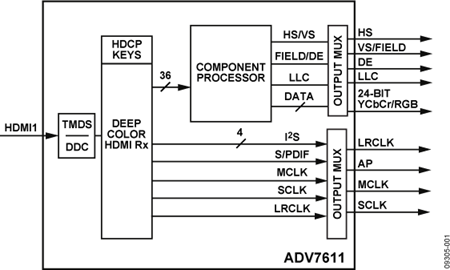

- The ADV7611 is a high quality, single input HDMI®-capable receiver. It incorporates an HDMI-capable receiver that supports all mandatory 3D TV defined in HDMI 1.4a. The ADV7611 supports formats up to UXGA 60 Hz at 8 bit.
- FEATURES
- High-Definition Multimedia Interface (HDMI®) 1.4a features supported
- All mandatory and additional 3D video formats supported
- Extended colorimetry, including sYCC601, Adobe RGB,
- Adobe YCC 601, xvYCC extended gamut color
- CEC 1.4-compatible
- HDMI receiver
- 165 MHz maximum TMDS clock frequency
- 24-bit output pixel bus
- High-bandwidth Digital Content Protection (HDCP) 1.4 support with internal HDCP keys
- HDCP repeater support Up to 127 KSVs supported
- Integrated CEC controller
- Programmable HDMI equalizer
- 5 V detect and Hot Plug assert for HDMI port
- Audio support
- SPDIF (IEC 60958-compatible) digital audio
- HDMI audio extraction support
- Advanced audio mute feature
- General
- Interrupt controller with two interrupt outputs
- Standard identification (STDI) circuit
- Highly flexible 24-bit pixel output interface
- Internal EDID RAM
- Any-to-any 3 × 3 color space conversion (CSC) matrix
- 2-layer PCB design supported
- 64-lead LQFP_EP, 10 mm × 10 mm package
- Qualified for automotive applications
- APPLICATIONS
- Projectors
- Automotive
- Video conferencing
- HDTVs
- AVR, HTiB
- Soundbars
- Video switches
ADV7611BSWZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | LQFP-64 |
| Supply Voltage (DC) | 1.71V (min) |
| Resolution (Bits) | 8.0 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 10.2 mm |
| Size-Width | 10.2 mm |
| Size-Height | 1.45 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
