- 1 A Rated Current, 110 VDC, 125 VAC Voltage Rating, Flat Polarized Relay
- * Compact flat body saves space
- * Outstanding surge resistance
- * The use of twin crossbar contacts ensures high contact reliability
- * Increased packaging density
- * Nominal operating power 140 mW
- * Outstanding vibration and shock resistance
- 2 Form C contact. AgPd + Au Clad (stationary), AgPd (movable) contact material.

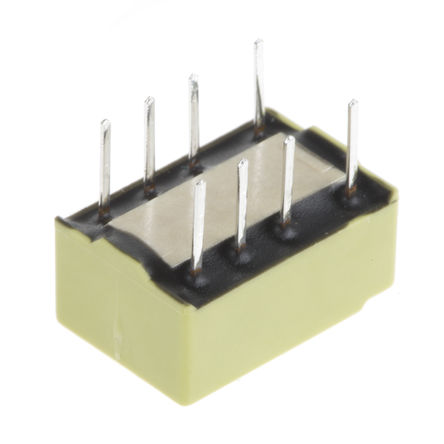

AGQ20024 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP |
| Current Rating | 1 A |
| Power Rating | 30 W |
| Contacts Type | DPDT |
| Contact Current Rating | 2 A |
| Coil Voltage | 24 VDC |
| Coil Current | 9.6 mA |
| Coil Resistance | 2.504 kΩ |
| Carry Current | 1.00 A |
| Current Rating (Max) | 2 A |
| Coil Voltage (DC) | 24 V |
| Coil Power | 230 mW |
| Input Power (Max) | 30W, 37.5VA |
| Switching Current (Max) | 2 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 125 VAC |
| Show | |
| Size-Length | 10.6 mm |
| Size-Width | 7.2 mm |
| Size-Height | 5.2 mm |
| Contact Material | Silver Palladium |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490050 |
