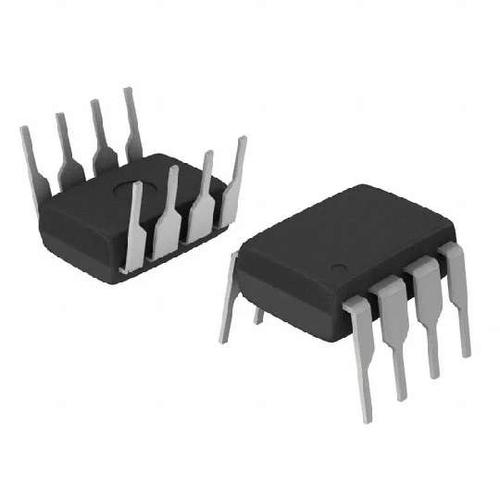

Image is for your reference only,please check specifications for details

UC3611N - TI
Manufacturer:
TI
ManyChip's Part#:
MC3720183
Category:
Diode Array, TVS Diode Array
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UC3611N Schottky Rectifier, 50V, 3A, Quad Isolated, DIP, 8Pins, 1.2V
Stock Locations:
Availability:
1,379 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UC3611N is a 8-pin quad Schottky Diode Array for general purpose use as individual diodes or as a high-speed, high-current bridge. It is particularly useful on the outputs of high-speed power MOSFET drivers where Schottky diodes are needed to clamp any negative excursions caused by ringing on the driven line. This diode is also ideally suited for use as voltage clamps when driving inductive loads such as relays and solenoids and to provide a path for current free-wheeling in motor drive applications. The use of Schottky diode technology features high efficiency through lowered forward voltage drop and decreased reverse recovery time.
High peak current
Low-forward voltage
Parallelable for lower VF or higher IF
Fast recovery time
50V Peak inverse voltage
1W at 70°C Power dissipation

Show

UC3611N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Voltage Rating (DC)	50.0 V
Current Rating	3.00 A
Capacitance	100 pF
Output Current	3.00 A
Number of Positions	8 Position
Forward Voltage	1.2V @1A
Reverse recovery time	20 ns
Forward Current	3 A
Maximum Forward Voltage (Max)	1.2 V
Forward Current (Max)	3000 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
