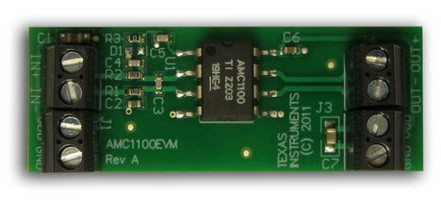

AMC1100EVM - TI
Manufacturer:
TI
ManyChip's Part#:
MC39354304
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
Evaluation Board, 4.25kV Peak Isolated Amplifier for Current Shunt Measurements
Stock Locations:
Availability:
767 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 56.19

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AMC1100EVM is an evaluation module for AMC1100, an isolated single channel analog amplifier an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. The AMC1100 is used in high resolution measurement applications including current monitoring, industrial process control and motor positioning systems. The evaluation module is a small form factor board containing all the necessary components to evaluate the AMC1100 device. The analog output has a nominal gain of 8 through the AMC1100 isolation amplifier. With an input voltage of ±250 mV, the nominal output is therefore ±2.0V. The output voltage is centered on VDD/2 and provides a convenient analog input range to the embedded analog to digital converters (ADCs) of the MSP430 and TMS320C2000 series of digital processors.
2mm, 2 terminal screw connectors to provide easy access to analog inputs & outputs of the amplifier
±250mV input voltage range optimized for shunt resistor applications
Fully differential output with common mode voltage automatically adjusted to VDD2/2
Very low non linearity 0.075% max at 5V
Fully specified over the extended industrial temperature range

Show

AMC1100EVM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
3dB Bandwidth	100 kHz
	Show
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
