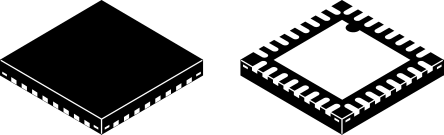

Image is for your reference only,please check specifications for details
- AMIS30522C5222G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC104192000
-
Category:Motor Driver
-
Package:NQFP-32
-
Datasheet:Datasheet 3D Model
-
Description:STEPPER MOTOR CONTROLLER, 1.6A, QCC32, 7 X 7MM, LEAD FREE, MO-220, NQFP-32
-
Stock Locations:
-
Availability:239 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.61
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Bipolar Motor Driver Power MOSFET SPI 32-NQFP (7x7)
AMIS30522C5222G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | NQFP-32 |
| Operating Voltage | 6V ~ 30V |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 0.5V ~ 4.5V |
| Output Current | 1.2 A |
| Supply Current | 8 mA |
| Switching Frequency | 4.4 MHz |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 6V ~ 30V |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 7 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
