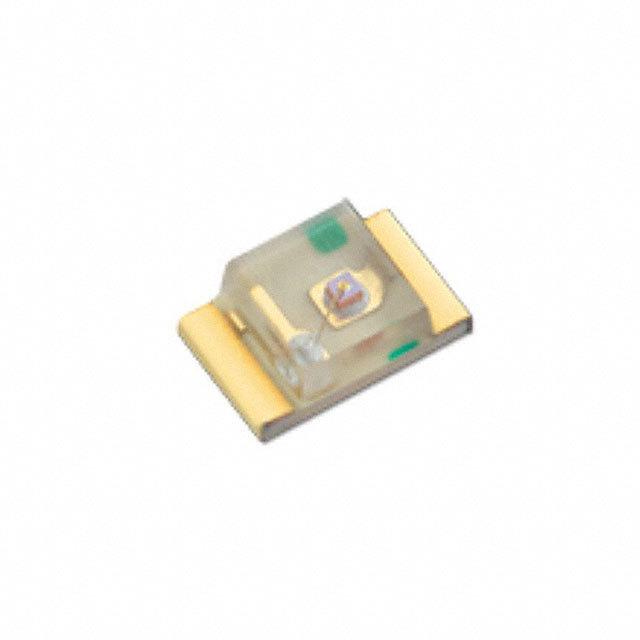

Image is for your reference only,please check specifications for details
- APT2012CGCK - Kingbright
-
Manufacturer:Kingbright
-
ManyChip's Part#:MC1961559
-
Category:Based LED
-
Package:0805
-
Datasheet:Datasheet 3D Model
-
Description:APT2012CGCK Green LED; 570nm 2012 (0805) Clear; Rectangle Lens SMD package
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Kingbright proudly introduce another breakthrough of Ultra thin SMD LED selections**
- * **The new “Minikin-Air" series**
- Using the latest AlGalnP and InGaN materials, Kingbright utilizes the most advanced technology to engineer the industry’s smallest and thinnest SMD LEDs – The Minikin-Air series.
- As electronics shrink down to new levels of portability, manufacturers have figured out how to cram more high functioning components in a more compressed board area. The Minikin-Air series is the perfect selection for design engineers as it represents the smallest, thinnest, yet still powerful and robust LEDs. The Minikin-Air series is available in two different package types and both are featured as industry’s thinnest SMD LED – 0.2mm in thickness (height). It is only 1⁄4 of total thickness compared to conventional 0603 SMD LEDs and reduces the mounting area by more than 50%.
- The top emitting package (APG1005) is the industry standard 0402 and the right angle package (APGA1602) is astonishingly small, measuring at only 1.6mm x 0.9mm x 0.2mm. The Minikin-Air series is available in Blue, True Green, Amber, Orange, and Red. The lightweight and miniaturization of the physical size of these ultra thin SMD LEDs make them optimal for mobile applications or any design with a space constraint. In compliance to RoHS and REACH regulations, both packages are compatible with automated placement equipment.
- **Features:**
- * 0.2mm in total thickness
- * Industry’s thinnest SMD LED
- * Available in Blue, True Green, Amber, Orange and Red.
- * Top emitting, chip-type SMD LED 1.0mm x 0.5mm x 0.2mm (0402 package).
- * Right angle, chip-type SMD LED 1.6mm x 0.9mm x 0.2mm.
- * High intensity output – power consumption as low as 1mA.
- * Ideal for portable devices, mobile consumer electronics and industrial handheld devices, backlighting and indicator applications.
APT2012CGCK Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Forward Voltage | 2.1 V |
| Wavelength | 570 nm |
| Luminous Intensity | 50 mcd |
| Viewing Angle | 120° |
| Peak Wavelength | 574 nm |
| Power Dissipation | 75 mW |
| Test Current | 20 mA |
| Forward Current | 30 mA |
| Maximum Forward Voltage (Max) | 2.5 V |
| Forward Current (Max) | 30 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 75 mW |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.75 mm |
| Color | Green |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
