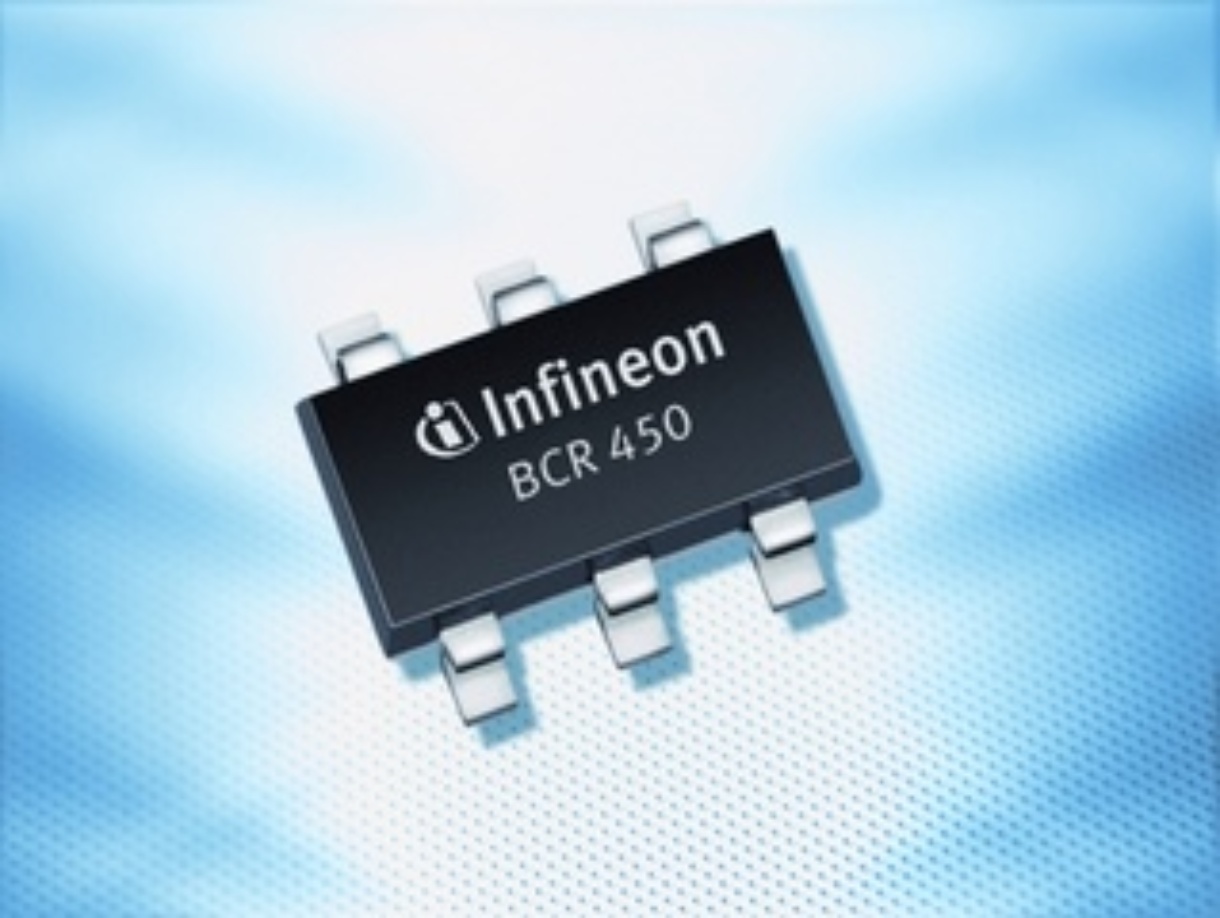

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Supply voltage range from 8 - 27V
- Output current with ext. transistor 100 - 2500mA
- Digital dimming input
- Over current / voltage protection
- Thermal shutdown
- Supply voltage up to 24V +UfLED
- Small SC-74 package
- Benefits:
- Dimmable
- Adjustable output current
- Low voltage overhead of 0.5V
- Power dissipation capability up to 5W by means of an external transistor
BCR450 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SC-74 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 1.20V ~ 27.0V |
| Output Voltage | 6 V |
| Output Current | 90 mA |
| Switching Frequency | 1 kHz |
| Input Voltage (Max) | 27 V |
| Input Voltage (Min) | 8 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
