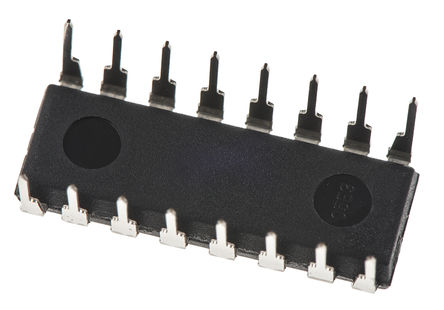

Image is for your reference only,please check specifications for details

L293NE - TI
Manufacturer:
TI
ManyChip's Part#:
MC3026529
Category:
Motor Driver
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
Motor Driver/Controller, Half-H, 4.5V to 36V supply, 36V/1A/4Outputs, DIP-16
Stock Locations:
Availability:
4,455 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.67

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L293NE is a quadruple high current half H driver in 16 pin DIP package. This driver is designed to drive inductive loads such as relays, solenoids, DC and bipolar stepping motors as well as other high current/high voltage loads in positive supply applications. All inputs are TTL compatible. Each output is a complete totem pole drive circuit with darlington transistor sink and pseudo darlington source. Drivers are enabled in pairs with drivers 1 and 2 enabled by pin 1, 2 and drivers 3 and 4 enabled by pin 3, 4. When an enable input is high, the associated drivers are enabled and their outputs are active and in phase with their inputs. When an enable input is low, those drivers are disabled and their outputs are off and in high impedance state. With proper data inputs each pair of drivers forms a full-H (or bridge) reversible drive. External high speed output clamp diodes should be used for inductive transient suppression.
Wide supply voltage range from 4.5V to 36V
Separate input logic supply
Internal ESD protection
Thermal shutdown
High noise immunity inputs
Functional replacements for SGS L293 and SGS L293D
Output current is 1A per channel
Peak output current is 2A per channel
Operating temperature range 0°C to 70°C
