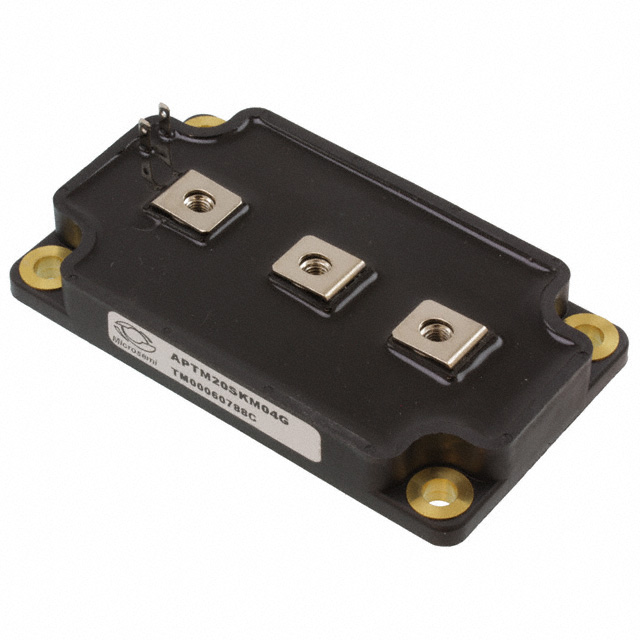

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Compared to traditional transistors, APTM20SKM04G power MOSFETs, developed by Microsemi, are able to both quickly switch between data lines as well as amplify the signals themselves. Its maximum power dissipation is 1250000 mW. This MOSFET transistor has an operating temperature range of -40 °C to 150 °C. This N channel MOSFET transistor operates in enhancement mode.
APTM20SKM04G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Chassis |
| Number of Pins | 5 Pin |
| Case/Package | SP-6 |
| Power Dissipation | 1250 W |
| Drain to Source Voltage (Vds) | 200 V |
| Rise Time | 64 ns |
| Input Capacitance (Ciss) | 28900pF @25V(Vds) |
| Fall Time | 116 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1250W (Tc) |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
