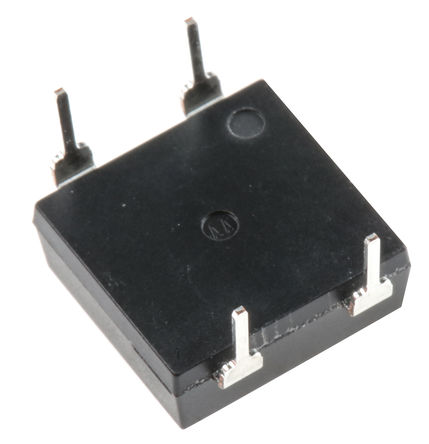

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AQY272 is a Solid State Relay with SPST-NO contact and through hole terminals. This AQY-series PD PhotoMOS relay features high capacity that supports various types of load control, from very small loads to a maximum 2A at the rated load voltage 60V.
High sensitivity and low on-resistance
750mW Power dissipation
5/10ms Turn-on and 3ms turn-off maximum time
-40 to 85°C Operating temperature range

Show

AQY272 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-4
Current Rating	2 A
Capacitance	1.5 pF
Output Voltage	0V ~ 60V
Output Current	2000 mA
Contacts Type	SPST-NO
Load Current	2 A
Number of Positions	4 Position
Input Current	50 mA
Power Dissipation	750 mW
Isolation Voltage	2.5 kV
Forward Current	50 mA
Input Voltage (Max)	1.5 V
Output Voltage (Max)	60 V
Output Current (Max)	2 A
Input Current (Min)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	750 mW
Voltage Rating	60 VAC
Input Voltage	1.16 VDC
	Show
Size-Height	3.2 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8435490050
ECCN Code	EAR99
