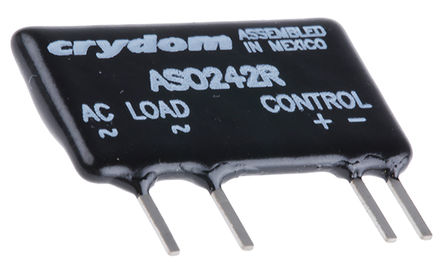

Image is for your reference only,please check specifications for details
- ASO242R - Crydom
-
Manufacturer:Crydom
-
ManyChip's Part#:MC19308800
-
Category:Solid State Relay
-
Package:SIP-4
-
Datasheet:Datasheet 3D Model
-
Description:CRYDOM ASO242R Solid State Relay, ASO Series, Mini SIP, SPST-NO, 2A, PCB, Through Hole, 24Vrms, 280Vrms
-
Stock Locations:
-
Availability:35 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 29.38
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ASO series panel-mount MINI SIP Solid State Relay with AC output. It has compact design and back-to-back SCR output.
ASO242R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Supply Voltage (DC) | 4.00 V, 10.0 V (max) |
| Current Rating | 2 A |
| Capacitance | 8 pF |
| Output Voltage | 24V ~ 280V |
| Output Current | 2000 mA |
| Contacts Type | SPST-NO |
| Load Current | 2 A |
| Input Current | 15 mA |
| Power Dissipation | 500 mW |
| Isolation Voltage | 2500 v |
| Output Voltage (Max) | 280 V |
| Input Current (Min) | 15 mA |
| Load Current (Max) | 2 A |
| Load Current (Min) | 0.06 Arms |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 280 V |
| Operating Voltage (Min) | 24 Vrms |
| Operating Voltage (Max) | 280 Vrms |
| Input Voltage | 4VDC ~ 10VDC |
| Show | |
| Size-Length | 24.1 mm |
| Size-Width | 5.1 mm |
| Size-Height | 12.7 mm |
| Operating Temperature | -30℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
