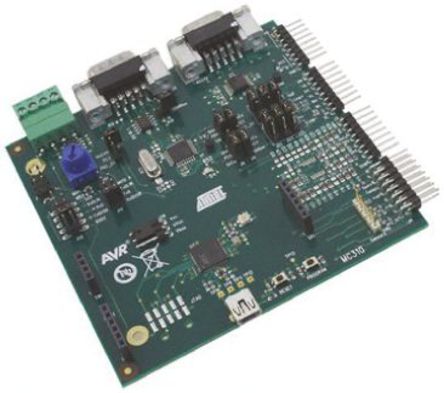

Image is for your reference only,please check specifications for details

Updated at 21/04/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ATAVRMC310 is the device board for ATmega32M1 AVR microcontroller. Connected to the power stage board MC300, it enables to drive brushless DC, brushed DC and stepper motors. The ATmega32M1 is the first AVR microcontroller of a new family dedicated to advanced motor-control applications. The MC310 board can be used to start development of applications which need to drive motors in sensor or sensorless mode with accurate control of speed and torque. This board is also designed to be connected on any other driver board which could share the same interface. Power and all signals needed for a power stage board are available on the right side of the board. Interfaces like USB or Atmel DB101 display module are also available for enhanced human interface. The MC310 motor control processor board is a ATmega32M1 AVR microcontroller solution connected to a power stage board intended for driving DC motors.
Motor control device board for Atmel ATmega32M1
Modular system with 2.54mm pin header connector for power board MC300
Sensor & sensorless modes capabilities for DC motors
Hall sensor header
Potentiometer for motor control
Networking interfaces: LIN, CAN
Headers for Atmel DB101 display module
USB interface for PC connection
Works with Atmel motor control centre software
Supplied with power board like MC300 from 3.3V up to 5V

Show

ATAVRMC310 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Core Architecture	AVR
Core Sub-Architecture	AVR32
	Show
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
