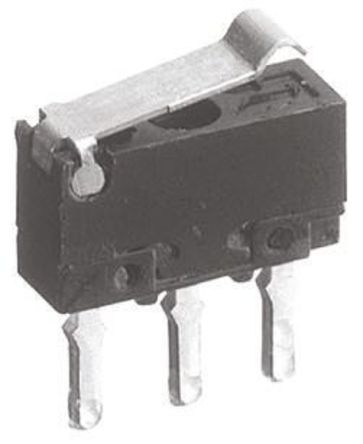

Image is for your reference only,please check specifications for details
- AV4444 - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC14377600
-
Category:Switch
-
Datasheet:Datasheet 3D Model
-
Description:Microswitch, Straight Terminal, AV4 Series, SPDT, Simulated Roller Lever, Through Hole, 500mA
-
Stock Locations:
-
Availability:49 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.88
Updated at 04/07/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AV4 series smallest super-miniature lightweight Snap-action Switch can be mounted close together in any directions. It is suitable for compact visual equipment.
- Solder, straight PC board, angle PC board and reverse angle PC board terminals available
- Pin plunger, hinge lever and simulated roller lever actuators available
- 300000 operations Minimum mechanical life
AV4444 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Voltage Rating (DC) | 30 V |
| Actuator Type | Roller Lever |
| Current Rating | 500mA (DC) |
| Contacts Type | SPDT |
| Contact Current Rating | 500mA @30VDC |
| Current Rating (Max) | 0.5A @30VDC |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating (DC Max) | 30 V |
| Show | |
| Size-Length | 7.5 mm |
| Size-Width | 2.5 mm |
| Size-Height | 8 mm |
| Contact Material | Stainless Steel |
| Operating Temperature | -25℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
