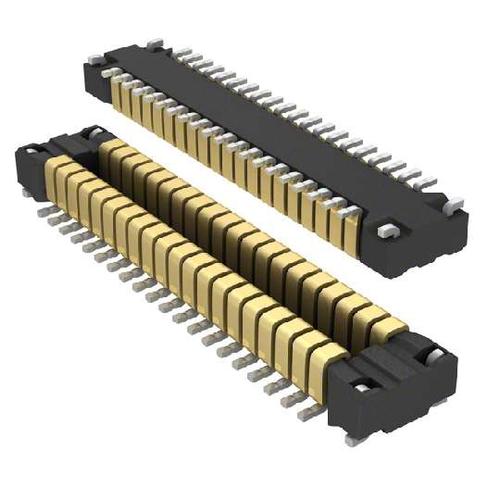

Image is for your reference only,please check specifications for details

AXT640124 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC18331993
Category:
Board to Board Connector, Mezzanine Connector
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRIC WORKS AXT640124 Board-To-Board Connector, 0.4mm, 40Contacts, Header, F4S Series, Surface Mount, 2Rows
Stock Locations:
Availability:
1,651 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.23

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

AXT640124 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	-
Number of Contacts	40 Contact
Gender	Male
Contact Plating	Gold
Current Rating	5 A
Insulation Resistance	1000 MΩ
Number of Rows	2 Row
Number of Positions	40 Position
Number of Mating Cycles	50 Cycle
Current Rating (Max)	0.3A/触头
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	60 V
Maximum Contact Resistance (Max)	90 mΩ
	Show
Size-Height	0.83 mm
Contact Material	Copper Alloy
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536694040
ECCN Code	EAR99
