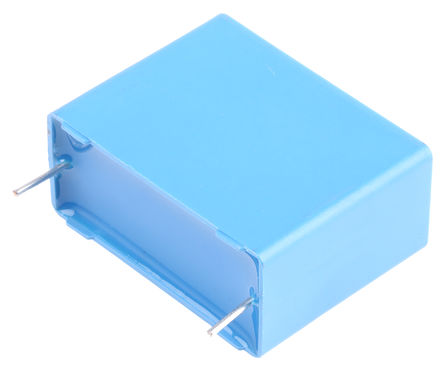

Image is for your reference only,please check specifications for details

B32774D8505K - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC43427569
Category:
Film Capacitor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
Cap Film 5uF 800V PP 10% (31.5 X 14 X 24.5mm) Radial 27.5mm 0.007Ω 85℃ Bulk
Stock Locations:
Availability:
732 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.02

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**MKP DC Link B3277x Series**
**Featured List:**
* Typical applications are frequency convertors, industrial power supplies, invertors
* Polypropylene (MKP) dielectric, plastic case with Epoxy resin seal (UL 94V-0)
* Compact high CV product
* Excelent self-healing properties
* G types have 4 pins to aid with mounting

Show

B32774D8505K Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Voltage Rating (DC)	800 V
Capacitance	5 µF
Equivalent Series Resistance (ESR)	15.3 mΩ
Capacitance Tolerance	±10 %
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	800 VDC
	Show
Size-Length	31.5 mm
Size-Height	24.5 mm
Lead Length	6 mm
Dielectric Material	Polypropylene
Operating Temperature	-40℃ ~ 105℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
