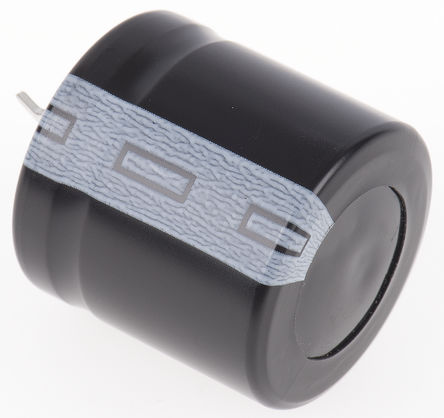

Image is for your reference only,please check specifications for details

B43501B9107M - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC80745193
Category:
Capacitor
Package:
Snap-In
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum Lytic 100uF 400V 20% (25 X 25mm) Snap-In 10mm 0.66Ω 800mA 10000H 85
Stock Locations:
Availability:
343 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.19

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B43501B9107M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Snap-In
Voltage Rating (DC)	400 V
Capacitance	100 µF
Equivalent Series Resistance (ESR)	660mΩ @100Hz
Capacitance Tolerance	±20 %
Test Frequency	100 Hz
Ripple Current	800 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	400 V
	Show
Size-Length	25 mm
Size-Height	25 mm
Size-Diameter	25.0 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 85℃
Packaging	Bulk
Life (Hours)	10000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
