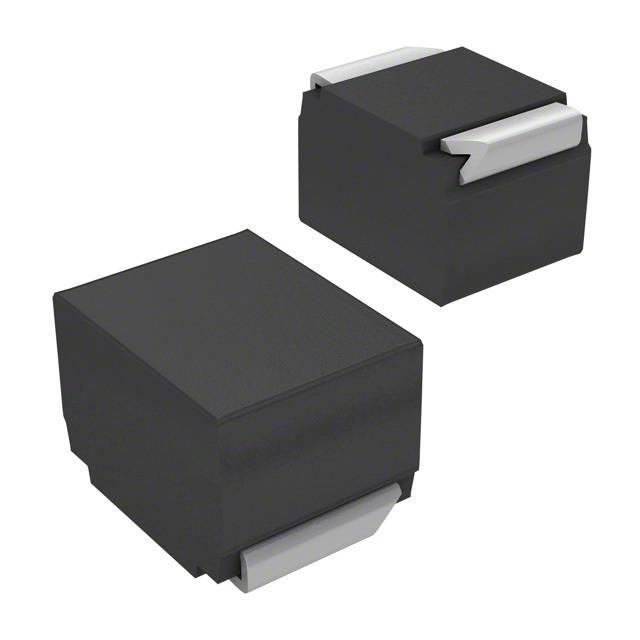

Image is for your reference only,please check specifications for details

B82422T1102K - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC56079396
Category:
Inductor Surface Mount
Package:
1210
Datasheet:
Datasheet 3D Model
Description:
Inductor General Purpose Chip Molded Wirewound 1uH 10% 7.96MHz 30Q-Factor Ferrite 400mA 600mOhm DCR 1210 Automotive T/R
Stock Locations:
Availability:
10,358 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.34

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B82422T series SMT Inductor with ceramic or ferrite core and laser-welded winding. It has electro-plated layer composition copper/silver/tin (Cu/Ag/Sn) termination and copper tin (CuSn6) base. It is suitable for filtering of supply voltages, coupling and decoupling.
Flame-retardant moulding
High Q factor
High resonance frequency
High L value
Qualified to AEC-Q200
Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
60 to 450mA Rated current range
0.010 to 100µH Rated inductance range

Show

B82422T1102K Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	3225
Case/Package	1210
Current Rating	400 mA
Inductance	1 µH
Self Resonant Frequency	300 MHz
Q-Factor	30.0
Resistance	600 mΩ
Resonant Frequency	300 MHz
Inductance Tolerance	±10 %
Test Frequency	7.96 MHz
DC Resistance (DCR)	0.6 Ω
Current Rating (DC)	400 mA
Resistance (DC Max)	0.6 Ω
	Show
Size-Length	3.2 mm
Size-Width	2.5 mm
Size-Height	2.1 mm
Operating Temperature	-55℃ ~ 125℃
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
