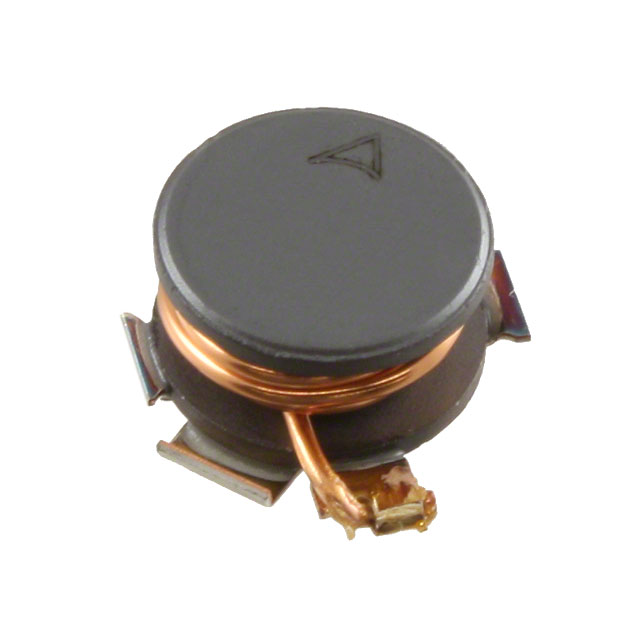

Image is for your reference only,please check specifications for details

B82464A4103M - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC55438917
Category:
Inductor
Package:
10.4mm x 10.4mm x 4.8mm
Datasheet:
Datasheet 3D Model
Description:
Inductor Power Wirewound 10uH 20% 100kHz Ferrite 2.9A 38mOhm DCR Automotive T/R
Stock Locations:
Availability:
545 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.07

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B82464A4103M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	10.4mm x 10.4mm x 4.8mm
Current Rating	2.9 A
Inductance	10 µH
Self Resonant Frequency	24 MHz
Resistance	38.0 mΩ
Resonant Frequency	24 MHz
Shielding	No
Inductance Tolerance	±20 %
Test Frequency	0.1 MHz
DC Resistance (DCR)	≤38.00 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	3.9 Ω
	Show
Size-Length	10.4 mm
Size-Width	10.4 mm
Size-Height	4.8 mm
Operating Temperature	-55℃ ~ 150℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
