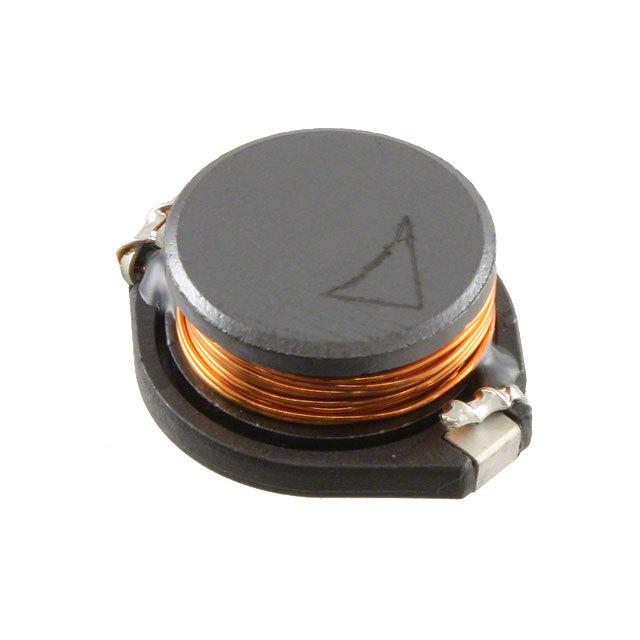

Image is for your reference only,please check specifications for details

B82479A1473M - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC59298180
Category:
Inductor
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Inductor Power Wirewound 47uH 20% 100kHz Ferrite 2.6A 87mOhm DCR Automotive T/R
Stock Locations:
Availability:
2,306 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

B82479A1473M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	18.54mm x 15.24mm x 7.11mm
Current Rating	2.6 A
Capacitance Tolerance	±20 %
Inductance	47 µH
Self Resonant Frequency	20.0 MHz
Resistance	87.0 mΩ
Resonant Frequency	20 MHz
Shielding	No
Inductance Tolerance	±20 %
Test Frequency	100 kHz
DC Resistance (DCR)	≤87 mΩ
Resistance (DC Max)	0.087 Ω
	Show
Size-Length	18.54 mm
Size-Width	15.24 mm
Size-Height	7.11 mm
Operating Temperature	-55℃ ~ 150℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
