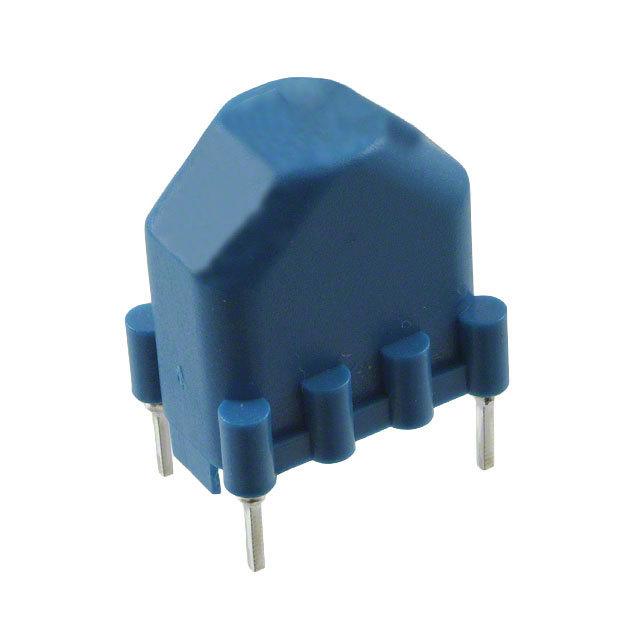

Image is for your reference only,please check specifications for details

B82721K2401N20 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC96291689
Category:
Inductor Choke
Package:
Vertical, 4 PC Pin
Datasheet:
Datasheet 3D Model
Description:
Common Mode Choke Through Hole Power Line 400mA 2 Lines 2Ω (Typ) -40℃ ~ 125℃
Stock Locations:
Availability:
378 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.7

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B82721K2401N20 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Vertical, 4 PC Pin
Voltage Rating (AC)	250 V
Current Rating	400 mA
Flammability Rating	UL 94 V-0
Inductance	39 mH
Resistance	2.00 Ω
Shielding	No
Test Frequency	10 kHz
DC Resistance (DCR)	2 Ω
Current Rating (Max)	400 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
Resistance (DC Max)	2 Ω
	Show
Size-Length	18.2 mm
Size-Width	13.2 mm
Size-Height	20.3 mm
Operating Temperature	-40℃ ~ 125℃
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
