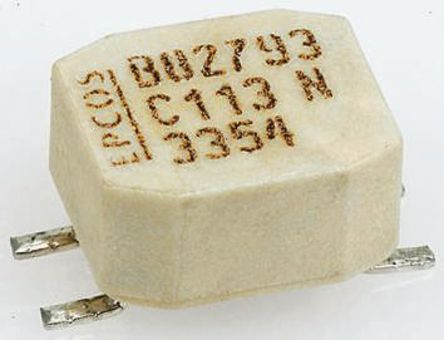

Image is for your reference only,please check specifications for details
- B82793C0105N265 - Epcos
-
Manufacturer:Epcos
-
ManyChip's Part#:MC4983644
-
Category:Inductor Choke
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:Common Mode Chokes Dual 1mH 100kHz 700mA 140mOhm DCR SMD Automotive T/R
-
Stock Locations:
-
Availability:2,508 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.15
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 1mH @ 100kHz 2 Line Common Mode Choke Surface Mount 700mA DCR 140mOhm (Typ)
B82793C0105N265 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SMD |
| Voltage Rating (DC) | 80.0 V |
| Current Rating | 700 mA |
| Inductance | 1 mH |
| Resistance | 140 mΩ |
| Inductance Tolerance | -30% ~ 50% |
| Test Frequency | 100 kHz |
| Current Rating (DC) | 700 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 42 VAC |
| Resistance (DC Max) | 140 mΩ |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 9.4 mm |
| Size-Height | 4.8 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
