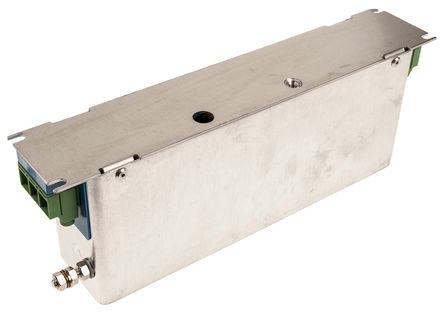

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Three Phase (Delta) EMC/EMI Line Filter 25A 520V, 300VAC 50/60Hz Single Stage Terminal Block

Show

B84143A0025R105 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Flange
Voltage Rating (DC)	520 V
Current Rating	25 A
Resistance	5 mΩ
Current Rating (Max)	25 A
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating (Max)	520 VAC
Voltage Rating	520 V
	Show
Size-Length	46.4 mm
Size-Width	231 mm
Size-Height	83 mm
Weight	1.10 kg
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
