Description

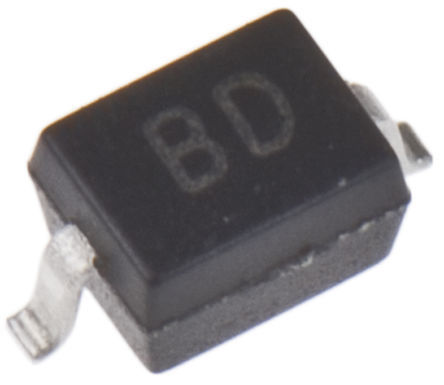

The BAT48JFILM is a surface mount Small Signal Schottky Diode featuring very low turn-on voltage, extremely fast switching, low forward and reverse recovery times. It is used for general purpose applications.
Very low conduction losses
Negligible switching losses
Low capacitance diode
150°C Operating junction temperature (maximum)

Show

BAT48JFILM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Voltage Rating (DC)	40.0 V
Current Rating	350 mA
Output Current	≤350 mA
Number of Positions	2 Position
Forward Voltage	750mV @200mA
Polarity	Standard
Thermal Resistance	550 ℃/W
Forward Current	350 mA
Max Forward Surge Current (Ifsm)	2 A
Maximum Forward Voltage (Max)	900 mV
Forward Current (Max)	350 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	1.8 mm
Size-Width	1.45 mm
Size-Height	1.07 mm
Operating Temperature	-65℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
