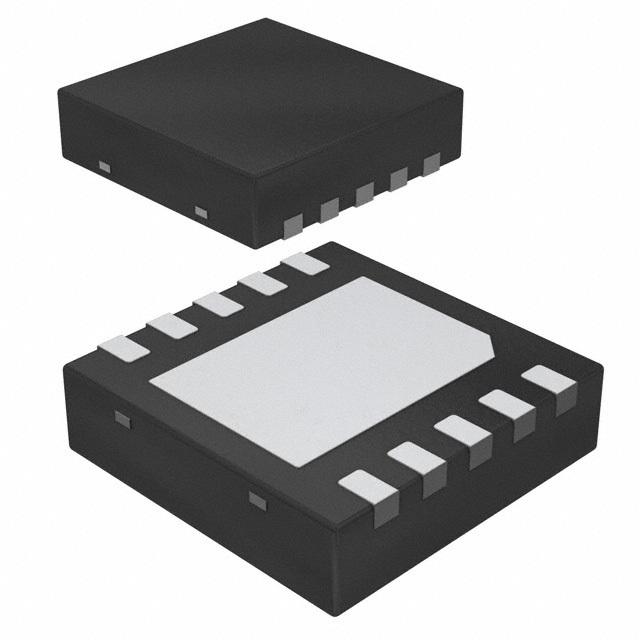

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS51211 is a small-sized single buck controller with adaptive on-time D-CAP™ mode. The device is suitable for low output voltage, high current, PC system power rail and similar point-of-load (POL) power supply in digital consumer products. A small package with minimal pin-count saves space on the PCB, while a dedicated EN pin and pre-set frequency minimize design effort required for new designs.
- FEATURES
- • Wide Input Voltage Range: 3 V to 28 V
- • Output Voltage Range: 0.7 V to 2.6 V
- • Wide Output Load Range: 0 to 20A+
- • Built-in 0.5% 0.7 V Reference
- • 290-kHz, Adaptive On-Time D-CAP™ MODE Control
- • 4700 ppm/°C RDS(on) Current Sensing
- • Internal 1-ms Voltage Servo Soft-start
- • Pre-Charged Start-up Capability
- • Built in Output Discharge
- • Power Good Output
- • Integrated Boost Switch
- • Built-in OVP/UVP/OCP
- • Thermal Shutdown (Non-latch)
- • SON-10 (DSC) Package
- APPLICATIONS
- • Notebook Computers
- • I/O Supplies
- • System Power Supplies
TPS51211DSCR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | WSON-10 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.7V ~ 2.6V |
| Output Current | 20 A |
| Power Dissipation | 1540 mW |
| Quiescent Current | 300 µA |
| Number of Regulated Outputs | 1 Output |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Input Voltage (Max) | 28 V |
| Input Voltage (Min) | 3 V |
| Output Current (Max) | 20 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1540 mW |
| Input Voltage | 3V ~ 28V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
