Description
- Product Details
- The ADP124/ADP125 are low quiescent current, low dropout linear regulators. They are designed to operate from an input voltage between 2.3 V and 5.5 V and to provide up to 500 mA of output current. The low 130 mV dropout voltage at a 500 mA load improves efficiency and allows operation over a wide input voltage range.
- The low 210 μA of quiescent current with a 500 mA load makes the ADP124/ADP125 ideal for battery-operated portable equipment. The ADP124 is capable of 31 fixed-output voltages from 1.75 V to 3.3 V. The ADP125 is the adjustable version of the device and allows the output voltage to be set between 0.8 V and 5.0 V by an external voltage divider. The ADP124/ADP125 are specifically designed for stable operation with tiny 1 μF ceramic input and output capacitors to meet the requirements of high performance, space constrained applications.

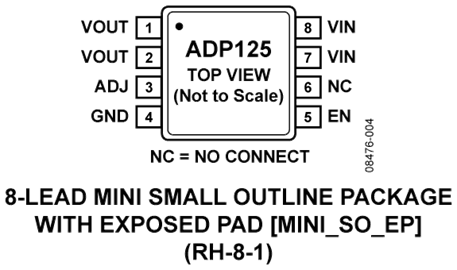

- The ADP124/ADP125 have an internal soft start that gives a constant start-up time of 350 μs. Short-circuit protection and thermal overload protection circuits prevent damage in adverse conditions. The ADP124/ADP125 are available in an 8-lead exposed paddle MSOP package. When compared with the standard MSOP package, the exposed paddle MSOP package has lower thermal resistance (θJA). The lower thermal resistance package allows the ADP124/ADP125 to meet the needs of a variety of portable applications while minimizing the rise in junction temperature.
- **Applications**
- Digital camera and audio devices
- Portable and battery-powered equipment
- Automatic meter reading (AMR) meters
- GPS and location management units
- Medical instrumentation
- Point of load power
- ### Features and Benefits
- Input voltage supply range: 2.3 V to 5.5 V
- 500 mA maximum output current
- Fixed and adjustable output voltage versions
- 1% initial accuracy
- Up to 31 fixed-output voltage options available from 1.75 V to 3.3 V
- Adjustable-output voltage range from 0.8 V to 5.0 V
- Very low dropout voltage: 130 mV
- Low quiescent current: 45 μA
- Low shutdown current: <1 μA
- Excellent PSRR performance: 60 dB at 100 kHz
- Excellent load/line transient response
- See data sheet for additional features
ADP125ARHZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 5V |
| Output Current | 500 mA |
| Supply Current | 45.0 µA |
| Quiescent Current | 0.045 mA |
| voltage rating | 0.13V @500mA |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.3 V |
| Output Current (Max) | 0.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Input Voltage | 2.3V ~ 5.5V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.94 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| Mil-Spec | No |
