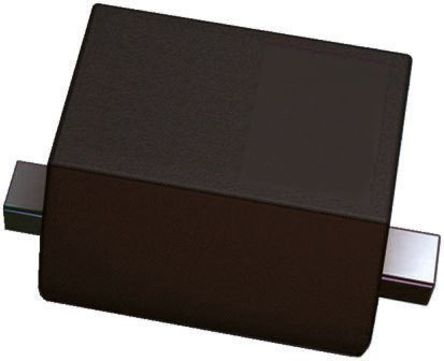

Image is for your reference only,please check specifications for details

BAT54XV2T5G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2986004
Category:
Schottky Diode
Package:
SOD-523-2
Datasheet:
Datasheet 3D Model
Description:
ON Semi BAT54XV2T5G, SMT Schottky Diode, 30V 200mA, 5ns, 2Pin SOD-523
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Schottky diode is designed for high speed switching applications, circuit protection and voltage clamping. Extremely low forward voltage reduces conduction loss. The miniature surface mount package is excellent for hand held and portable applications where space is limited.
Features
---
|
Pb-Free Package is Available
S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable

Show

BAT54XV2T5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523-2
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Forward Voltage	800mV @100mA
Thermal Resistance	635℃/W (RθJA)
Reverse recovery time	5 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	600 mA
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	1.3 mm
Size-Width	0.9 mm
Size-Height	0.7 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
